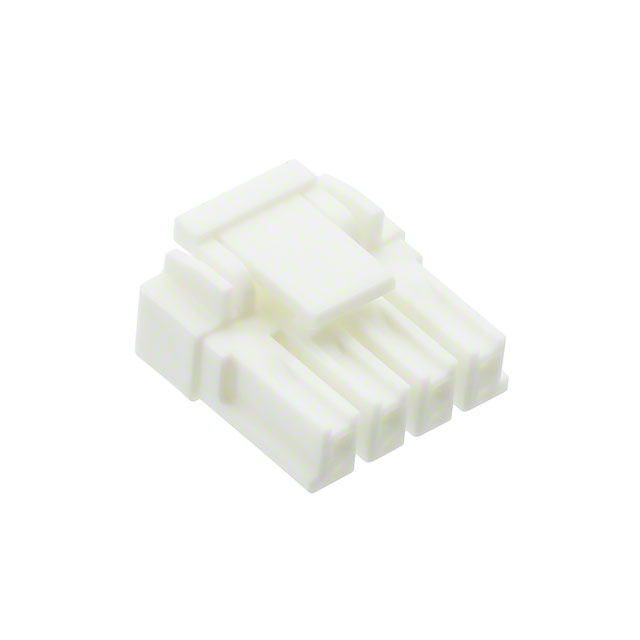

DF33C-4S-3.3C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 4POS 3.30MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF33C-4S-3.3C Datasheet

DF33C-4S-3.3C

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 4POS 3.30MM

Deep-Dive with AI

DocumentsDF33C-4S-3.3C Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF33C-4S-3.3C

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch [x]	0.13 in
Pitch [x]	3.3 mm

DF33C Series

Part	Accessory Type	Number of Positions	For Use With/Related Products	Contact Termination	Pitch [x]	Pitch [x]	Fastening Type	Insulation Material	Note	Number of Rows	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Row Spacing	Row Spacing	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Voltage Rating	Contact Shape	Material Flammability Rating	Features	Number of Positions Loaded	Contact Material	Termination	Mated Stacking Heights	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)
Hirose Electric USA, Inc. DF33C-4RS-3.3	Retainer	4	DF33C Series
Hirose Electric USA, Inc. DF33C-4S-3.3C		4		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	1	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle
Hirose Electric USA, Inc. DF33C-2RS-3.3	Retainer	2	DF33C Series
Hirose Electric USA, Inc. DF33C-6DS-3.3C		6		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	2	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle	0.228 in	5.8 mm
Hirose Electric USA, Inc. DF33C-5RS-3.3	Retainer		DF33C Series
Hirose Electric USA, Inc. DF33C-6S-3.3C		6		Crimp	0.13 in	3.3 mm	Latch Lock	Polybutylene Terephthalate (PBT)	Contacts Not Included	1	Female Socket	Free Hanging (In-Line)	-35 °C	85 °C	White	Receptacle
Hirose Electric USA, Inc. DF33C-6RDS-3.3	Retainer	6	DF33C Series
Hirose Electric USA, Inc. DF33C-12DP-3.3DSA(24)		12					Locking Ramp	Nylon Polyamide (PA)		2	Male Pin	Through Hole	-35 °C	85 °C		Header			Shrouded - 4 Wall	0.118 in	3 mm	Beige	3.3 mm	0.13 in	11.5 mm	0.453 in	Board to Cable/Wire	500 V	Square	UL94 V-0	Board Guide	All	Brass	Solder	17.6 mm	5.8 mm	0.228 in	Tin	1 µm	39.4 µin
Hirose Electric USA, Inc. DF33C-12RDS-3.3	Retainer	12	DF33C Series
Hirose Electric USA, Inc. DF33C-3P-3.3DSA(24)							Locking Ramp	Polybutylene Terephthalate (PBT)		1	Male Pin	Through Hole	-35 °C	85 °C		Header			Shrouded - 4 Wall	0.118 in	3 mm	White	3.3 mm	0.13 in	11.5 mm	0.453 in	Board to Cable/Wire	500 V	Square	UL94 V-0	Board Guide	All	Brass	Solder	17.6 mm			Tin	1 µm	39.4 µin	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.23
		10	$ 0.20
		25	$ 0.19
		50	$ 0.18
		100	$ 0.17
		300	$ 0.16
		500	$ 0.15
		1000	$ 0.14
		2500	$ 0.13

Description

General part information

DF33C Series

4 Rectangular Connectors - Housings Receptacle White 0.130" (3.30mm)

Documents

Technical documentation and resources

DF33C-4S-3.3C

Datasheet
