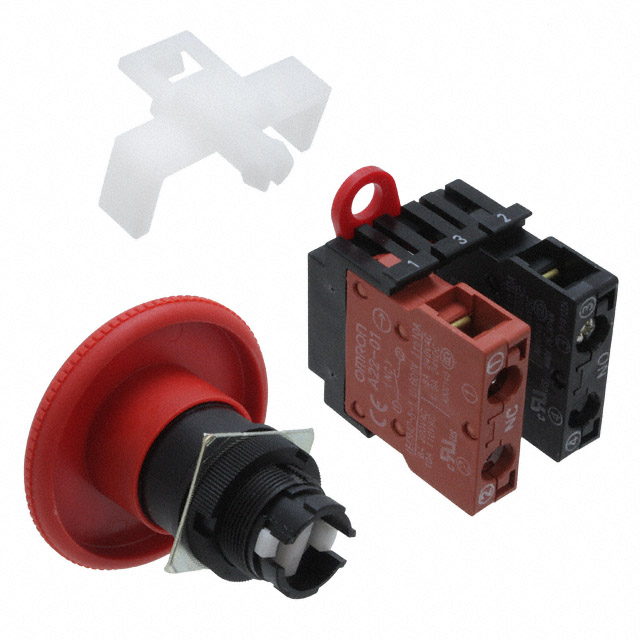

A22E-L-11

Active

Omron Electronics Inc-EMC Div

SW E-STOP TWIST RESET 10A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A22E-L-11

Active

Omron Electronics Inc-EMC Div

SW E-STOP TWIST RESET 10A 110V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A22E-L-11

Circuit	DPST-NO/NC
Current Rating (Amps)	10 A
Includes	1 Locking Ring, 1 Switch, 1 Nut
Ingress Protection	IP65
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22.3 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

A22E Series

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - DC	Includes	Circuit	Reset Operation	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Features	Type	Illumination	Actuator Type	Requires	Panel Cutout Dimensions
Omron Electronics Inc-EMC Div A22E-S-01S	22.3 mm	IP65	30 V	1 Locking Ring 1 Nut 1 Switch	SPST-NC	Twist	On-Off	Screw Terminal	-20 C	70 °C	100 mA	Panel Mount Front
Omron Electronics Inc-EMC Div A22EL-M-T1-01	22.3 mm	IP65 - Dust Tight Water Resistant	24 V	1 Locking Ring 1 Nut 1 Switch	SPST-NC	Twist	On-Off	Screw Terminal	-20 C	55 °C	10 A	Panel Mount Front	110 V	Illuminated (Red)
Omron Electronics Inc-EMC Div A22E-L-01	22.3 mm	IP65	24 V	1 Locking Ring 1 Nut 1 Switch	SPST-NC	Twist	On-Off	Screw Terminal	-20 C	70 °C	10 A	Panel Mount Front	110 V
Omron Electronics Inc-EMC Div A22E-M-02-EMS	22.3 mm	IP65	24 V	1 Locking Ring 1 Nut 1 Switch	DPST-NC	Twist	On-Off	Screw Terminal	-20 C	70 °C	10 A	Panel Mount Front	110 V	EMS Marking
Omron Electronics Inc-EMC Div A22E-S															Maintained	Non-Illuminated	E-Stop Round	Contact Block(s)	22.3 mm
Omron Electronics Inc-EMC Div A22E-L-11	22.3 mm	IP65	24 V	1 Locking Ring 1 Nut 1 Switch	DPST-NO/NC	Twist	Off-On On-Off	Screw Terminal	-20 C	70 °C	10 A	Panel Mount Front	110 V
Omron Electronics Inc-EMC Div A22E-M-02B	22.3 mm	IP65	24 V		DPST-NC	Twist	On-Off	Screw Terminal	-20 C	70 °C	10 A	Chassis Mount	110 V
Omron Electronics Inc-EMC Div A22E-M-01	22.3 mm	IP65	24 V	1 Locking Ring 1 Nut 1 Switch	SPST-NC	Twist	On-Off	Screw Terminal	-20 C	70 °C	10 A	Panel Mount Front	110 V
Omron Electronics Inc-EMC Div A22EL-M-T1-11	22.3 mm	IP65 - Dust Tight Water Resistant	24 V	1 Locking Ring 1 Nut 1 Switch	DPST-NO/NC	Twist	Off-On On-Off	Screw Terminal	-20 C	55 °C	10 A	Panel Mount Front	110 V	Illuminated (Red)
Omron Electronics Inc-EMC Div A22E-MP-10	22.3 mm	IP65	24 V	1 Locking Ring 1 Nut 1 Switch	SPST-NO	Pull	Off-On	Screw Terminal	-20 C	70 °C	10 A	Panel Mount Front	110 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.12
		5	$ 64.97
		10	$ 58.75
		25	$ 55.30
		50	$ 50.98
		100	$ 48.38

Description

General part information

A22E Series

SW E-STOP TWIST RESET 10A 110V

Documents

Technical documentation and resources
