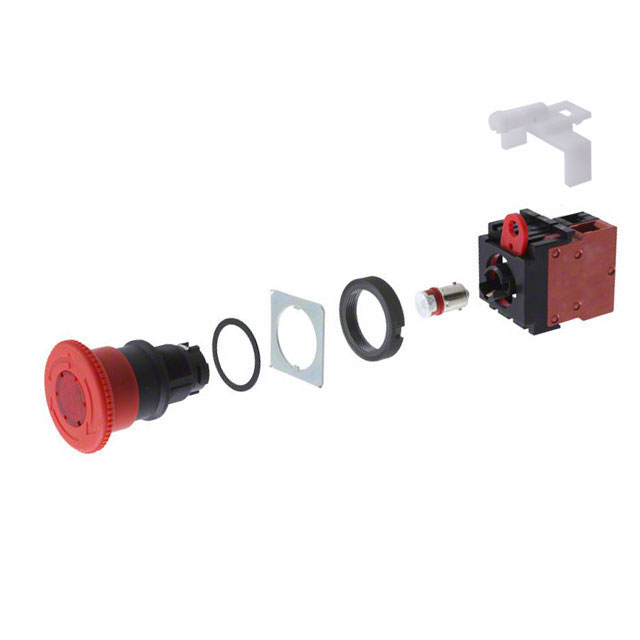

A22EL-M-T1-01
ActiveOmron Electronics Inc-EMC Div
SW E-STOP TWIST RESET 10A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A22EL-M-T1-01
ActiveOmron Electronics Inc-EMC Div
SW E-STOP TWIST RESET 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A22EL-M-T1-01 |
|---|---|
| Circuit | SPST-NC |
| Current Rating (Amps) | 10 A |
| Features | Illuminated (Red) |
| Includes | 1 Locking Ring, 1 Switch, 1 Nut |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 110 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 90.82 | |
| 5 | $ 89.58 | |||
| 10 | $ 83.36 | |||
| 25 | $ 78.38 | |||
| 50 | $ 72.16 | |||
| 100 | $ 64.80 | |||
Description
General part information
A22E Series
SW E-STOP TWIST RESET 10A 110V
Documents
Technical documentation and resources
