DK-CYCII-2C20N

Obsolete

Altera

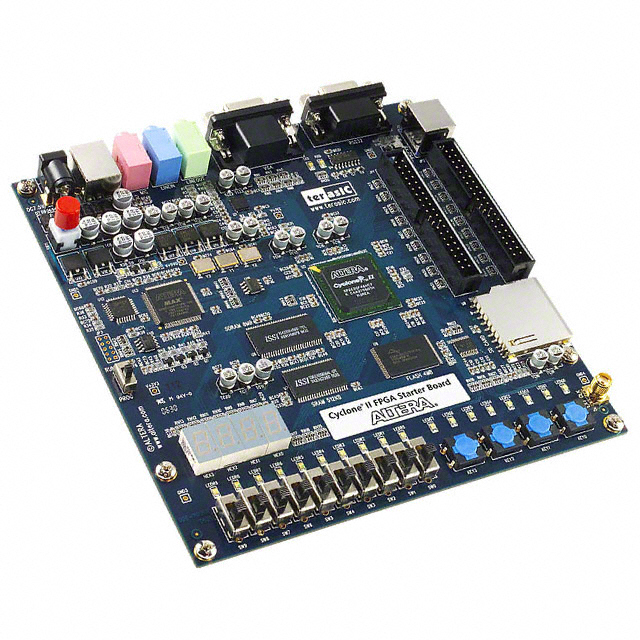

CYCLONE II STARTER KIT EP2C20N

Search across all available documentation for this part.

Obsolete

Altera

CYCLONE II STARTER KIT EP2C20N

Technical Specifications

Parameters and characteristics for this part

Specification	DK-CYCII-2C20N

Contents	Cable(s), Board(s), Power Supply
Platform	Cyclone II FPGA Starter
Suggested Programming Environment	Quartus II
Utilized IC / Part	EP2C20

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Package / Case	Number of I/O	Supplier Device Package	Number of LABs/CLBs	Mounting Type	Total RAM Bits	Contents	Suggested Programming Environment	Utilized IC / Part	Platform
Altera EP2C20F256C8N	0 °C	85 °C	18752	256-LBGA	152	256-FBGA (17x17)	1172	Surface Mount	239616 bits
Altera EP2C20F256C6	0 °C	85 °C	18752	256-LBGA	152	256-FBGA (17x17)	1172	Surface Mount	239616 bits
Altera EP2C35U484C6N	0 °C	85 °C	33216	484-FBGA	322	484-UBGA (19x19)	2076	Surface Mount	483840
Altera EP2C5Q208I8	-40 C	100 °C	4608	208-BFQFP	142	208-PQFP (28x28)	288	Surface Mount	119808 bits
Altera DK-CYCII-2C20N										Board(s) Cable(s) Power Supply	Quartus II	EP2C20	Cyclone II FPGA Starter
Altera EP2C20AF484I8N	-40 C	100 °C	18752	484-BGA	315	484-FBGA (23x23)	1172	Surface Mount	239616 bits
Altera EP2S15F672C3	0 °C	85 °C	15600	672-BBGA	366		780	Surface Mount	419328 Bits
Altera EP2C35F672C7N	0 °C	85 °C	33216	672-BGA			2076	Surface Mount	483840
Altera EP2C5T144C6	0 °C	85 °C	4608	144-LQFP		144-TQFP (20x20)	288	Surface Mount	119808 bits
Altera EP2C35U484I8N	-40 C	100 °C	33216	484-FBGA	322	484-UBGA (19x19)	2076	Surface Mount	483840

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cyclone II FPGA Starter EP2C20 Cyclone® II FPGA Evaluation Board

Technical documentation and resources
