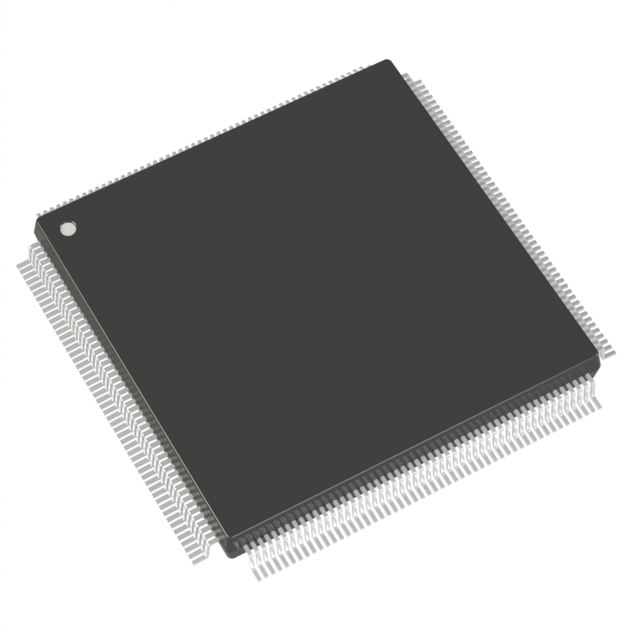

EP2C5Q208I8

Obsolete

Altera

IC FPGA 142 I/O 208QFP

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 142 I/O 208QFP

Technical Specifications

Parameters and characteristics for this part

Specification	EP2C5Q208I8

Mounting Type	Surface Mount
Number of I/O	142
Number of LABs/CLBs	288
Number of Logic Elements/Cells	4608
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	208-BFQFP
Supplier Device Package	208-PQFP (28x28)
Total RAM Bits	119808 bits

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Logic Elements/Cells	Package / Case	Number of I/O	Supplier Device Package	Number of LABs/CLBs	Mounting Type	Total RAM Bits	Contents	Suggested Programming Environment	Utilized IC / Part	Platform
Altera EP2C20F256C8N	0 °C	85 °C	18752	256-LBGA	152	256-FBGA (17x17)	1172	Surface Mount	239616 bits
Altera EP2C20F256C6	0 °C	85 °C	18752	256-LBGA	152	256-FBGA (17x17)	1172	Surface Mount	239616 bits
Altera EP2C35U484C6N	0 °C	85 °C	33216	484-FBGA	322	484-UBGA (19x19)	2076	Surface Mount	483840
Altera EP2C5Q208I8	-40 C	100 °C	4608	208-BFQFP	142	208-PQFP (28x28)	288	Surface Mount	119808 bits
Altera DK-CYCII-2C20N										Board(s) Cable(s) Power Supply	Quartus II	EP2C20	Cyclone II FPGA Starter
Altera EP2C20AF484I8N	-40 C	100 °C	18752	484-BGA	315	484-FBGA (23x23)	1172	Surface Mount	239616 bits
Altera EP2S15F672C3	0 °C	85 °C	15600	672-BBGA	366		780	Surface Mount	419328 Bits
Altera EP2C35F672C7N	0 °C	85 °C	33216	672-BGA			2076	Surface Mount	483840
Altera EP2C5T144C6	0 °C	85 °C	4608	144-LQFP		144-TQFP (20x20)	288	Surface Mount	119808 bits
Altera EP2C35U484I8N	-40 C	100 °C	33216	484-FBGA	322	484-UBGA (19x19)	2076	Surface Mount	483840

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cyclone® II Field Programmable Gate Array (FPGA) IC 142 119808 4608 208-BFQFP
