R404121120

Active

Radiall USA, Inc.

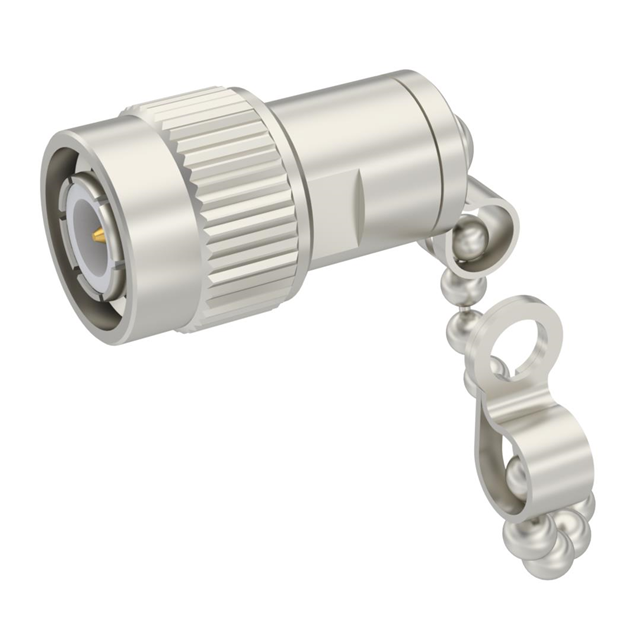

TERMINATION: TNC M 4GHZ 1W 50OHM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: TNC M 4GHZ 1W 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	R404121120

Body Finish	Nickel
Body Material	Brass
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Material	Contact Finish	Dielectric Material	Body Finish	Connector Style	Mounting Type	Connector Type	Contact Material	Impedance	Frequency - Max [Max]	Features
Radiall USA, Inc. R404122000	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel	TNC	Cap Free Hanging	Female Socket Jack	Beryllium Copper	50 Ohms	4 GHz
Radiall USA, Inc. R404121000	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel	TNC	Cap Free Hanging	Male Pin Plug	Brass	50 Ohms	4 GHz
Radiall USA, Inc. R404121120	Brass	Gold	Polytetrafluoroethylene (PTFE)	Nickel	TNC	Cap Free Hanging	Male Pin Plug	Brass	50 Ohms	4 GHz	Chain

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 58.64

General part information

Terminator Coax Connector Plug, Male Pin TNC 50 Ohms
