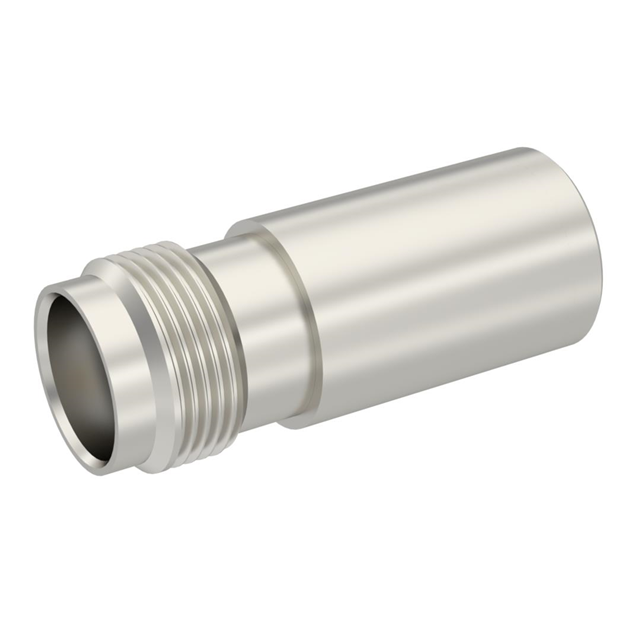

R404122000
ActiveRadiall USA, Inc.
TERMINATION: TNC F 4GHZ 1W 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
R404122000
ActiveRadiall USA, Inc.
TERMINATION: TNC F 4GHZ 1W 50OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R404122000 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Connector Style | TNC |
| Connector Type | Female Socket, Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
R40412 Series
| Part | Body Material | Contact Finish | Dielectric Material | Body Finish | Connector Style | Mounting Type | Connector Type | Contact Material | Impedance | Frequency - Max [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | TNC | Cap Free Hanging | Female Socket Jack | Beryllium Copper | 50 Ohms | 4 GHz | |
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | TNC | Cap Free Hanging | Male Pin Plug | Brass | 50 Ohms | 4 GHz | |
Radiall USA, Inc. | Brass | Gold | Polytetrafluoroethylene (PTFE) | Nickel | TNC | Cap Free Hanging | Male Pin Plug | Brass | 50 Ohms | 4 GHz | Chain |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 56.54 | |
Description
General part information
R40412 Series
Terminator Coax Connector Jack, Female Socket TNC 50 Ohms
Documents
Technical documentation and resources
No documents available
