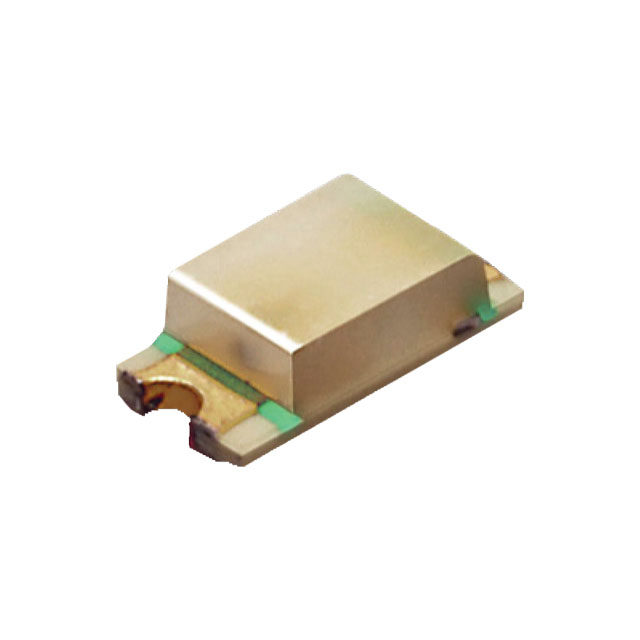

SML-D13WWT86A - SML-D12x8(C)

SML-D13WWT86A

Active
Rohm Semiconductor

LED, YELLOW, SMD, 0603 [1608 METRIC], 20 MA, 2.1 V, 587 NM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENPart Explanation+21
SML-D13WWT86A - SML-D12x8(C)

SML-D13WWT86A

Active
Rohm Semiconductor

LED, YELLOW, SMD, 0603 [1608 METRIC], 20 MA, 2.1 V, 587 NM

Deep-Dive with AI

DocumentsTechnical Data Sheet ENPart Explanation+21

Technical Specifications

Parameters and characteristics for this part

SpecificationSML-D13WWT86A
ColorYellow
Current - Test20 mA
Height (Max) [Max] [z]0.65 mm
Lens Size [x]1.2 mm
Lens Size [y]0.8 mm
Lens StyleRectangle with Flat Top
Millicandela Rating112 mcd
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric)
Size / Dimension [x]1.6 mm
Size / Dimension [y]0.8 mm
Voltage - Forward (Vf) (Typ)2.1 V
Wavelength - Dominant587 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.55
10$ 0.32
100$ 0.21
500$ 0.16
1000$ 0.15
Digi-Reel® 1$ 0.55
10$ 0.32
100$ 0.21
500$ 0.16
1000$ 0.15
Tape & Reel (TR) 3000$ 0.10
NewarkEach (Supplied on Cut Tape) 1$ 0.47
10$ 0.33
25$ 0.30
50$ 0.27
100$ 0.24
250$ 0.23
500$ 0.20
1000$ 0.19

Description

General part information

SML-D13DW(A) Series

SML-D1(C) series is an automotive grade small surface-mount type chip LED compliant with AEC-Q102. It is a mass-produced package with a wide range of color and luminous intensity lineup and a proven market track record.
