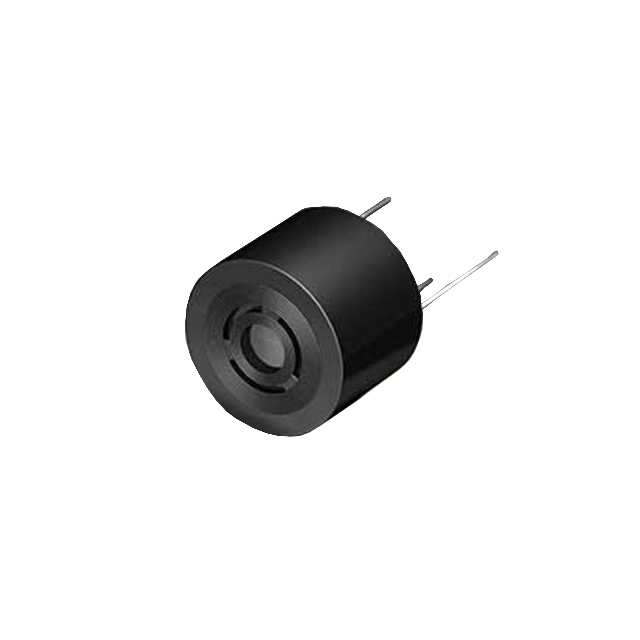

UW-05-628-P(F)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.56MM TH
Deep-Dive with AI
Search across all available documentation for this part.
UW-05-628-P(F)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.56MM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UW-05-628-P(F) |
|---|---|
| Current - Supply [Max] | 50 mA |
| Current - Supply [Min] | 20 mA |
| Frequency | 2.1 kHz |
| Height - Seated (Max) [Max] | 28.07 mm |
| Height - Seated (Max) [Max] [z] | 1.105 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Warble Fast |
| Port Location | Top |
| Size / Dimension [diameter] | 35.56 mm |
| Size / Dimension [diameter] | 1.4 in |
| Sound Pressure Level (SPL) | 93 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 6 VDC |
UW-05 Series
| Part | Operating Mode | Input Type | Termination | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Voltage Range [Min] | Voltage Range [Max] | Current - Supply [Max] | Current - Supply [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency | Technology | Port Location | Mounting Type | Sound Pressure Level (SPL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc | Warble Slow | DC | PC Pins | 28.07 mm | 1.105 in | 5 VDC | 15 V | 80 mA | 35 mA | 35.56 mm | 1.4 in | 2.1 kHz | Piezo | Top | Through Hole | 97 dB |
Floyd Bell Inc | Warble Fast | DC | PC Pins | 28.07 mm | 1.105 in | 6 VDC | 28 VDC | 50 mA | 20 mA | 35.56 mm | 1.4 in | 2.1 kHz | Piezo | Top | Through Hole | 93 dB |
Floyd Bell Inc | Warble Fast | DC | PC Pins | 28.07 mm | 1.105 in | 5 VDC | 15 V | 80 mA | 35 mA | 35.56 mm | 1.4 in | 2.1 kHz | Piezo | Top | Through Hole | 97 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UW-05 Series
Buzzers Piezo 20 ~ 50mA 2.1kHz 93dB @ 6V, 61cm Through Hole PC Pins
Documents
Technical documentation and resources
No documents available
