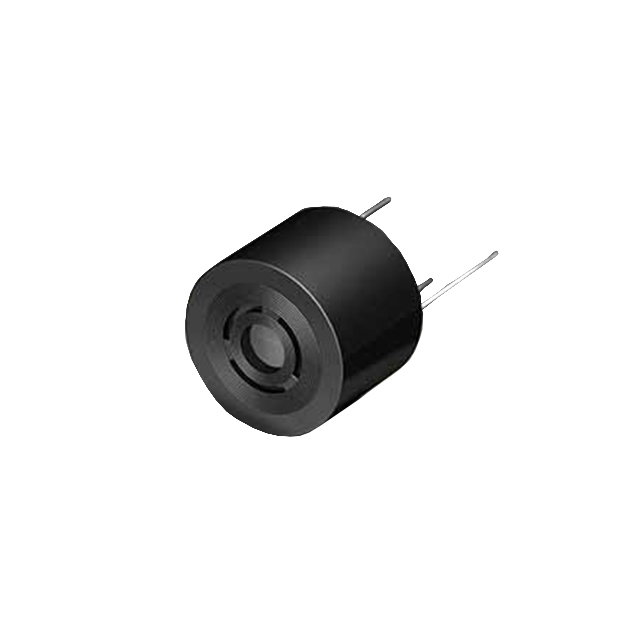

UW-05-515-P(S)

Active

Floyd Bell Inc

BUZZER PIEZO 35.56MM TH

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.56MM TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Mode	Input Type	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Voltage Range [Min]	Voltage Range [Max]	Current - Supply [Max]	Current - Supply [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Technology	Port Location	Mounting Type	Sound Pressure Level (SPL)
Floyd Bell Inc UW-05-515-P(S)	Warble Slow	DC	PC Pins	28.07 mm	1.105 in	5 VDC	15 V	80 mA	35 mA	35.56 mm	1.4 in	2.1 kHz	Piezo	Top	Through Hole	97 dB
Floyd Bell Inc UW-05-628-P(F)	Warble Fast	DC	PC Pins	28.07 mm	1.105 in	6 VDC	28 VDC	50 mA	20 mA	35.56 mm	1.4 in	2.1 kHz	Piezo	Top	Through Hole	93 dB
Floyd Bell Inc UW-05-515-P(F)	Warble Fast	DC	PC Pins	28.07 mm	1.105 in	5 VDC	15 V	80 mA	35 mA	35.56 mm	1.4 in	2.1 kHz	Piezo	Top	Through Hole	97 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.95

General part information

Buzzers Piezo 35 ~ 80mA 2.1kHz 97dB @ 5V, 61cm Through Hole PC Pins

Technical documentation and resources

No documents available
