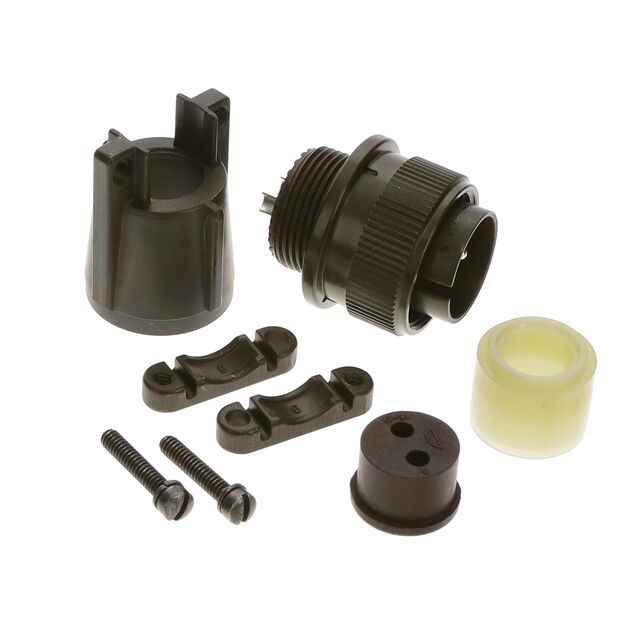

MS3106E16-11P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 2P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106E16-11P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 2P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106E16-11P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 12.7 mm |
| Cable Opening [custom] | 0.5 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 16-11 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.54 | |
| 10 | $ 31.90 | |||
| 25 | $ 29.91 | |||
| 50 | $ 28.48 | |||
| 100 | $ 27.12 | |||
| 250 | $ 25.43 | |||
Description
General part information
MS3106E16 Series
2 Position Circular Connector Plug, Male Pins Solder Cup
