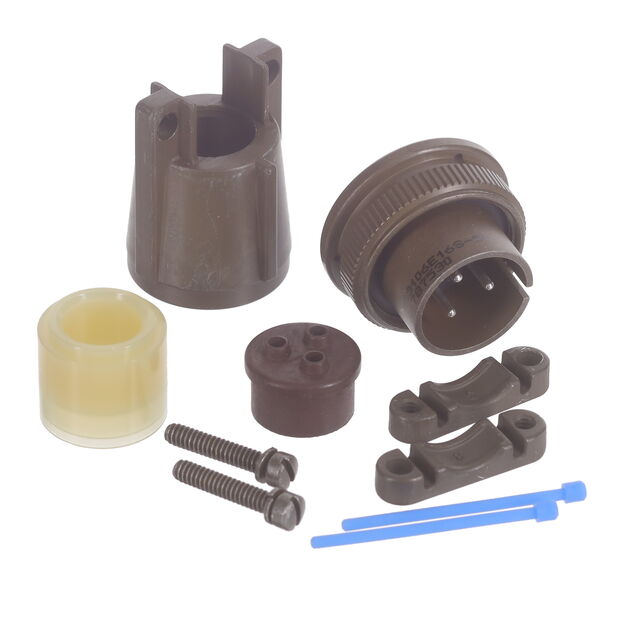

MS3106E16S-5P - MS3106E16S-5P

MS3106E16S-5P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3106E16S-5P
ApplicationsMilitary, Marine
Cable Opening [custom]12.7 mm
Cable Opening [custom]0.5 in
ColorOlive Drab
Connector TypePlug, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
FeaturesCable Clamp, Coupling Nut, Backshell
GradeMilitary
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting TypeFree Hanging (In-Line)
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-DTL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert16S-5
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 30.55
10$ 26.75
25$ 25.60
50$ 24.77
100$ 23.94
250$ 22.62

Description

General part information

MS3106E16 Series

3 Position Circular Connector Plug, Male Pins Solder Cup
