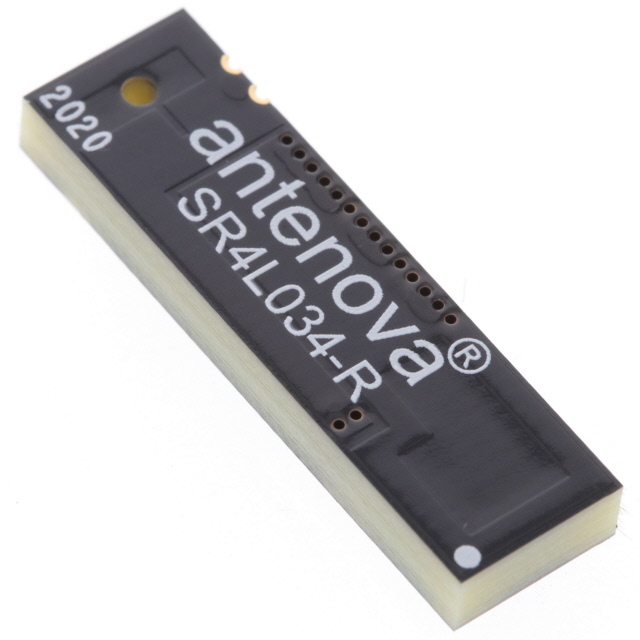

SR4L034-R

Active

Antenova

ANTENNA LTE -1.5DBI GAIN 798MHZ/960MHZ/2170MHZ/2400MHZ/2690MHZ SMD

Search across all available documentation for this part.

Active

Antenova

ANTENNA LTE -1.5DBI GAIN 798MHZ/960MHZ/2170MHZ/2400MHZ/2690MHZ SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SR4L034-R

Antenna Type	PCB Trace
Applications	4G, EDGE, DCS, GPRS, CDMA, IMT, 3G, GSM, HSPA, LTE, UMTS, PCS, WCDMA
Frequency (Center/Band)	1.94 GHz, 2.595 GHz, 829 MHz, 2.35 GHz
Frequency Group	Wide Band
Frequency Range [Max]	798 MHz, 2.69 GHz, 2.17 GHz, 960 MHz, 2.4 GHz
Frequency Range [Min]	1.71 GHz, 2.3 GHz, 824 MHz, 698 MHz, 2.5 GHz
Height (Max)	3.3 mm
Height (Max) [Max] [z]	0.13 in
Mounting Type	Surface Mount
Number of Bands	4
Return Loss	-7 dB, -6.6 dB, -6 dB, -5.1 dB, -4.9 dB
RF Family/Standard	Cellular
Termination	Solder
VSWR	2.5, 3.7, 3.5, 2.8

Part	Termination	Mounting Type	VSWR	Number of Bands	Applications	Return Loss	Height (Max) [Max] [z]	Height (Max)	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Frequency Group	RF Family/Standard	Frequency [Min]	Frequency [Max]	Type	Supplied Contents	For Use With/Related Products
Antenova SR4L034-L	Solder	Surface Mount	2.5 2.8 3.5 3.7	4	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	-7 dB -6.6 dB -6 dB -5.1 dB -4.9 dB	0.13 in	3.3 mm	PCB Trace	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	1.94 GHz 2.35 GHz 2.595 GHz 829 MHz	Wide Band	Cellular
Antenova SR4L034-R	Solder	Surface Mount	2.5 2.8 3.5 3.7	4	3G 4G CDMA DCS EDGE GPRS GSM HSPA IMT LTE PCS UMTS WCDMA	-7 dB -6.6 dB -6 dB -5.1 dB -4.9 dB	0.13 in	3.3 mm	PCB Trace	2.17 GHz 2.4 GHz 2.69 GHz 798 MHz 960 MHz	1.71 GHz 2.3 GHz 2.5 GHz 698 MHz 824 MHz	1.94 GHz 2.35 GHz 2.595 GHz 829 MHz	Wide Band	Cellular
Antenova SR4L034-EVB-4															1.71 GHz 2.3 GHz 2.5 GHz 698 MHz	2.17 GHz 2.4 GHz 2.7 GHz 960 MHz	Antenna	Board(s)	SR4L034

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder Surface Mount
