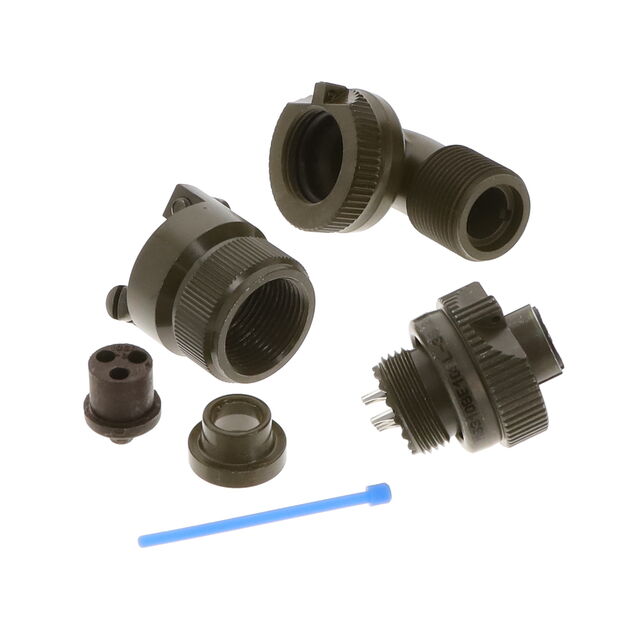

MS3108E10SL-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E10SL-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E10SL-3S |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Coupling Nut, Cable Clamp |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.28 | |
| 10 | $ 40.63 | |||
| 25 | $ 39.07 | |||
| 50 | $ 37.77 | |||
| 100 | $ 35.69 | |||
| 250 | $ 34.64 | |||
Description
General part information
MS3108E10 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
