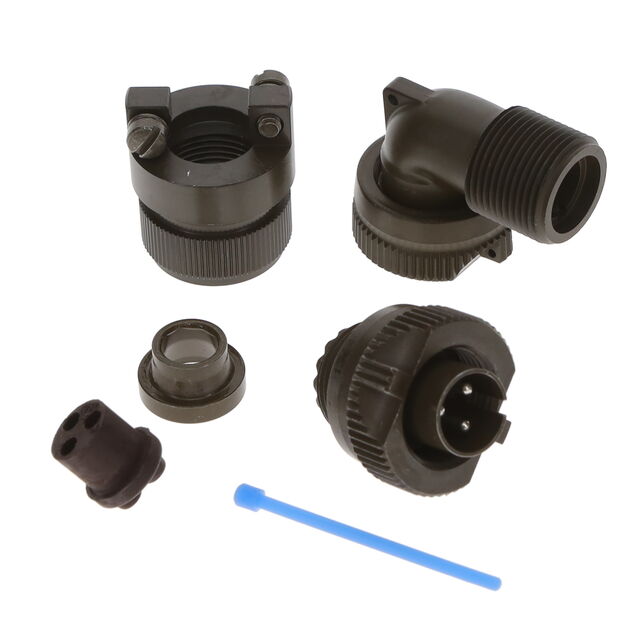

MS3108E10SL-3P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E10SL-3P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [diameter] | 7.14 mm |
| Cable Opening [diameter] | 0.281 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 30.18 | |
| 10 | $ 26.43 | |||
| 25 | $ 25.28 | |||
| 50 | $ 24.47 | |||
| 100 | $ 23.65 | |||
| 250 | $ 22.35 | |||
| Bulk | 1 | $ 87.46 | ||
| 10 | $ 75.80 | |||
| 25 | $ 66.88 | |||
| 50 | $ 59.84 | |||
| 100 | $ 52.48 | |||
Description
General part information
MS3108E10 Series
3 Position Circular Connector Plug, Male Pins Solder Cup
