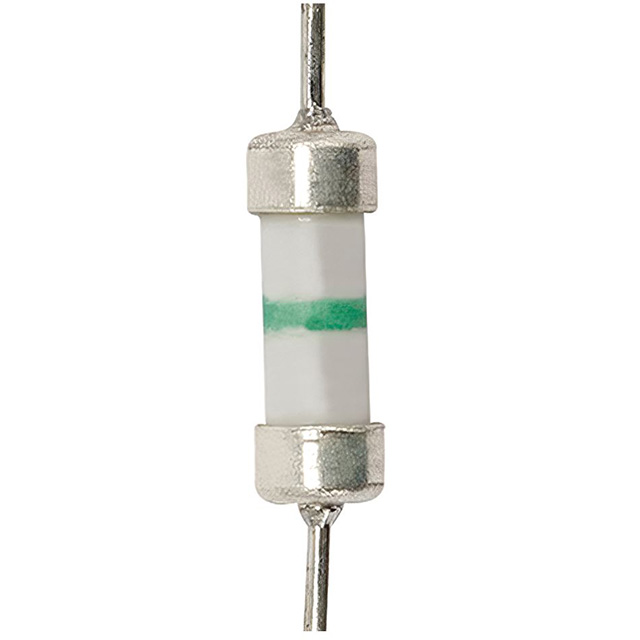

C308F-V-80MA-TR1
ActiveEaton - Electronics Division
FUSE CERAMIC 80MA 250VAC/VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C308F-V-80MA-TR1 |
|---|---|
| Applications | Hazardous Locations |
| Breaking Capacity @ Rated Voltage | 4 kA |
| Current Rating (Amps) | 80 mA |
| DC Cold Resistance | 5.1 Ohms |
| Features | Intrinsically Safe |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 0.00018 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 3.14 mm |
| Size / Dimension [diameter] | 0.124 in |
| Size / Dimension [x] | 0.343 in |
| Size / Dimension [x] | 8.7 mm |
| Voltage Rating - AC | 250 VAC |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.87 | |
| 5 | $ 4.89 | |||
| 10 | $ 4.52 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.48 | |||
| 250 | $ 3.13 | |||
| 500 | $ 2.89 | |||
| Tape & Reel (TR) | 1500 | $ 2.84 | ||
Description
General part information
C308F Series
80mA 250 VAC 250 VDC Fuse Cartridge, Ceramic Through Hole
