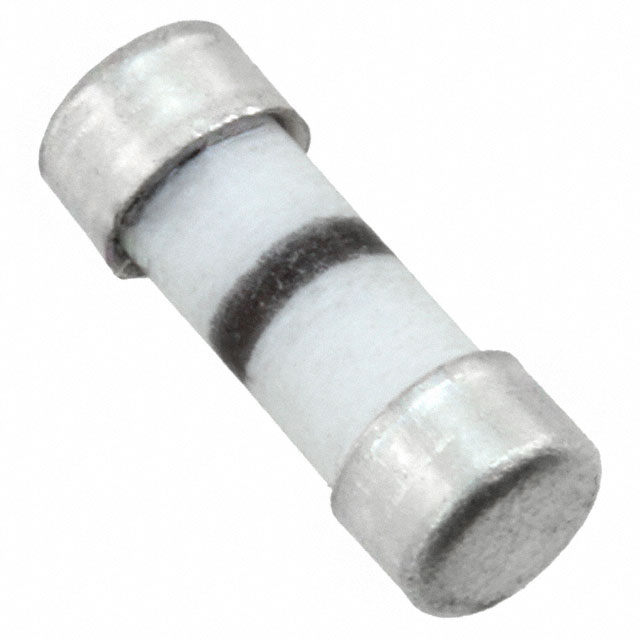

C308F200MA-TR

Active

Eaton - Electronics Division

FUSE CERM 200MA 250VAC/VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C308F200MA-TR

Active

Eaton - Electronics Division

FUSE CERM 200MA 250VAC/VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C308F200MA-TR

Applications	Hazardous Locations
Breaking Capacity @ Rated Voltage	4 kA
Current Rating (Amps)	0.2 A
DC Cold Resistance	1.01 Ohms
Features	Intrinsically Safe
Fuse Type	Cartridge, Ceramic
Melting I²t	0.0024
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Cartridge, Non-Standard
Response Time	Fast Blow
Voltage Rating - AC	250 VAC
Voltage Rating - DC	250 V

C308F Series

Part	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	DC Cold Resistance	Mounting Type	Melting I˛t	Package / Case	Fuse Type	Applications	Response Time	Melting I²t	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]
Eaton - Electronics Division C308F250MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	0.25 A	Intrinsically Safe	0.71 Ohms	Surface Mount	0.0053	Cartridge Non-Standard	Cartridge Ceramic	Hazardous Locations	Fast Blow
Eaton - Electronics Division C308F200MA-TR	250 V	4 kA	250 VAC	-55 °C	125 °C	0.2 A	Intrinsically Safe	1.01 Ohms	Surface Mount		Cartridge Non-Standard	Cartridge Ceramic	Hazardous Locations	Fast Blow	0.0024
Eaton - Electronics Division C308F-V-80MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	80 mA	Intrinsically Safe	5.1 Ohms	Through Hole		Cartridge Non-Standard (Axial)	Cartridge Ceramic	Hazardous Locations	Fast Blow	0.00018	3.14 mm	0.124 in	0.343 in	8.7 mm
Eaton - Electronics Division C308F-V-50MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	50 mA	Intrinsically Safe	9.4 Ohms	Through Hole	0.0001	Cartridge Non-Standard (Axial)	Cartridge Ceramic	Hazardous Locations	Fast Blow		3.14 mm	0.124 in	0.343 in	8.7 mm
Eaton - Electronics Division C308F-V-250MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	0.25 A	Intrinsically Safe	0.71 Ohms	Through Hole	0.0053	Cartridge Non-Standard (Axial)	Cartridge Ceramic	Hazardous Locations	Fast Blow		3.14 mm	0.124 in	0.343 in	8.7 mm
Eaton - Electronics Division C308F160MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	160 mA	Intrinsically Safe	2.05 Ohms	Surface Mount		Cartridge Non-Standard	Cartridge Ceramic	Hazardous Locations	Fast Blow	0.00166
Eaton - Electronics Division C308F125MA-TR1	250 V	4 kA	250 VAC	-55 °C	125 °C	125 mA	Intrinsically Safe	2.2 Ohms	Surface Mount	0.00134	Cartridge Non-Standard	Cartridge Ceramic	Hazardous Locations	Fast Blow	0.00134

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.85
		5	$ 4.88
		10	$ 4.51
		50	$ 3.75
		100	$ 3.47
		250	$ 3.12
	Digi-Reel®	1	$ 5.85
		5	$ 4.88
		10	$ 4.51
		50	$ 3.75
		100	$ 3.47
		250	$ 3.12
	Tape & Reel (TR)	500	$ 2.88
		1000	$ 2.66
		1500	$ 2.53
		2500	$ 2.38
		3500	$ 2.31

Description

General part information

C308F Series

200mA 250 VAC 250 VDC Fuse Cartridge, Ceramic Surface Mount
