031-317
ActiveRF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM, RG174, RG188, RG316
Deep-Dive with AI
Search across all available documentation for this part.
031-317
ActiveRF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM, RG174, RG188, RG316
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-317 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Spacer, 1 Connector, 1 Insulator, 1 Ferrule, 1 Contact |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
031-31 Series
| Part | Frequency - Max [Max] | Connector Style | Insertion Loss | Housing Color | Cable Group | Mating Cycles | Includes | Shield Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Termination | Number of Ports | Voltage Rating | Body Finish | Connector Type | Impedance | Fastening Type | Mounting Type | Body Material | Center Contact Plating | Dielectric Material | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 4 GHz | BNC | 0.2 dB | Silver | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Insulator | Crimp | 85 °C | -55 °C | Crimp | 1 | 500 V | Nickel | Female Socket Jack | 50 Ohms | Bayonet Lock | Free Hanging (In-Line) | Brass | Gold | Polyoxymethylene (POM) Acetal | Phosphor Bronze |
Amphenol RF | 4 GHz | BNC | 0.2 dB | Silver | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Spacer | Crimp | 165 °C | -65 ░C | Crimp | 1 | 500 V | Nickel | Female Socket Jack | 50 Ohms | Bayonet Lock | Free Hanging (In-Line) | Brass | Gold | Polytetrafluoroethylene (PTFE) | Phosphor Bronze |
Amphenol RF | 4 GHz | BNC | 0.2 dB | Silver | 188 316 Double Braid M17/152-RD316 RG-179 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Spacer | Crimp | 165 °C | -65 ░C | Crimp | 1 | 500 V | Nickel | Male Pin Plug | 50 Ohms | Bayonet Lock | Free Hanging (In-Line) | Brass | Gold | Polytetrafluoroethylene (PTFE) | Brass |
Amphenol RF | 4 GHz | BNC | 0.2 dB | Silver | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 500 | 1 Connector 1 Contact 1 Ferrule 1 Insulator | Crimp | 85 °C | -40 °C | Crimp | 1 | 500 V | Nickel | Male Pin Plug | 50 Ohms | Bayonet Lock | Free Hanging (In-Line) Right Angle | Brass | Gold | Polyoxymethylene (POM) Acetal | Brass Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
031-31 Series

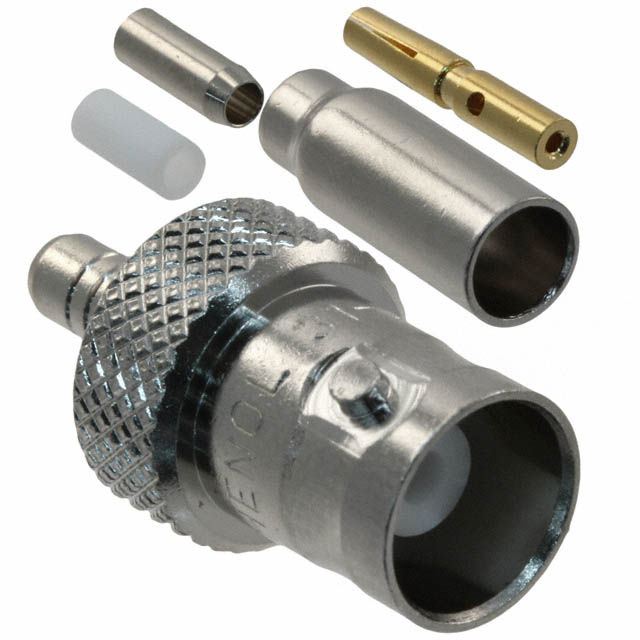

The 31-317 is a RF Connector, BNC series, BNC straight Crimp Jack with gold-plated phosphor bronze contacts and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for LMR-100, M17/119-RG174, RG-174 and RG-188 cable.
