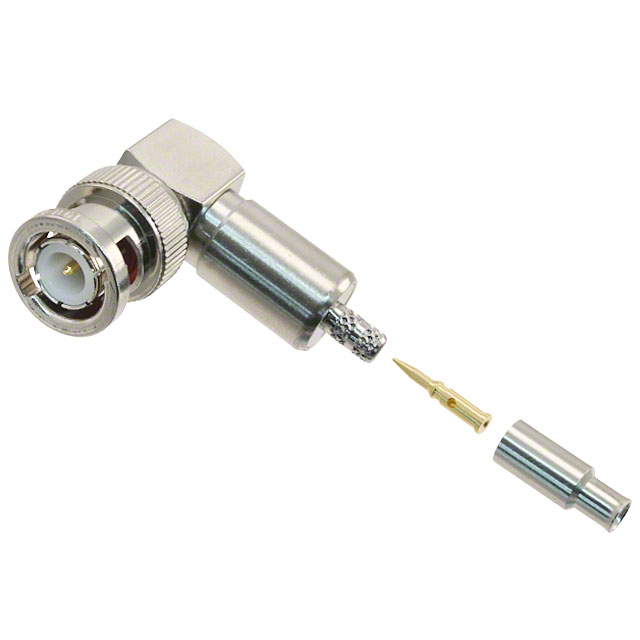

031-316-RFX

Active

Amphenol RF

CONN BNC PLUG R/A 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG R/A 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	031-316-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Contact, 1 Connector, 1 Insulator, 1 Ferrule
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Style	Insertion Loss	Housing Color	Cable Group	Mating Cycles	Includes	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Number of Ports	Voltage Rating	Body Finish	Connector Type	Impedance	Fastening Type	Mounting Type	Body Material	Center Contact Plating	Dielectric Material	Center Contact Material
Amphenol RF 031-317-RFX	4 GHz	BNC	0.2 dB	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	1 Connector 1 Contact 1 Ferrule 1 Insulator	Crimp	85 °C	-55 °C	Crimp	1	500 V	Nickel	Female Socket Jack	50 Ohms	Bayonet Lock	Free Hanging (In-Line)	Brass	Gold	Polyoxymethylene (POM) Acetal	Phosphor Bronze
Amphenol RF 031-317	4 GHz	BNC	0.2 dB	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Spacer	Crimp	165 °C	-65 ░C	Crimp	1	500 V	Nickel	Female Socket Jack	50 Ohms	Bayonet Lock	Free Hanging (In-Line)	Brass	Gold	Polytetrafluoroethylene (PTFE)	Phosphor Bronze
Amphenol RF 031-315-1005	4 GHz	BNC	0.2 dB	Silver	188 316 Double Braid M17/152-RD316 RG-179	500	1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Spacer	Crimp	165 °C	-65 ░C	Crimp	1	500 V	Nickel	Male Pin Plug	50 Ohms	Bayonet Lock	Free Hanging (In-Line)	Brass	Gold	Polytetrafluoroethylene (PTFE)	Brass
Amphenol RF 031-316-RFX	4 GHz	BNC	0.2 dB	Silver	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	1 Connector 1 Contact 1 Ferrule 1 Insulator	Crimp	85 °C	-40 °C	Crimp	1	500 V	Nickel	Male Pin Plug	50 Ohms	Bayonet Lock	Free Hanging (In-Line) Right Angle	Brass	Gold	Polyoxymethylene (POM) Acetal	Brass Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.82

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
