AP7354D-33FS4-7-EVM

Active

Diodes Inc

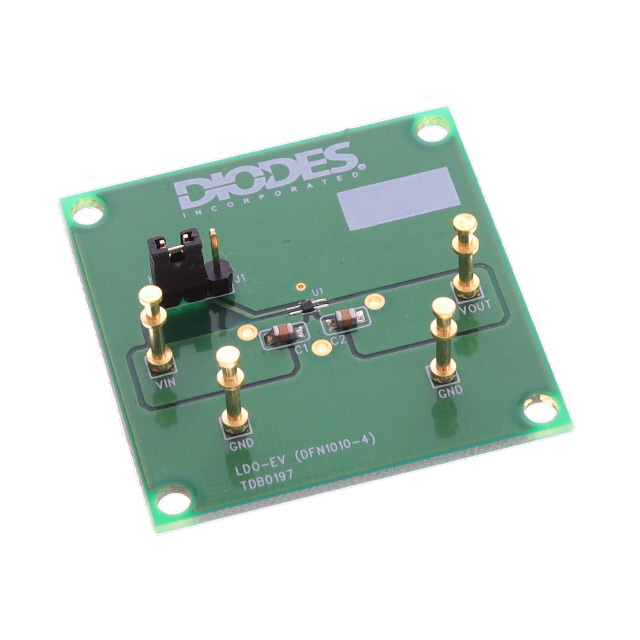

EVAL BOARD FOR AP7354

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AP7354D-33FS4-7-EVM

Active

Diodes Inc

EVAL BOARD FOR AP7354

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AP7354D-33FS4-7-EVM

Board Type	Fully Populated
Channels per IC	1 - Single
Current - Output	150 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	AP7354
Voltage - Output	3.3 V

AP7354 Series

150MA Ultra Low Quiescent Current LDO with ENABLE

Part	Current - Quiescent (Iq)	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Number of Regulators	Package / Case	Supplier Device Package	Voltage - Input (Max) [Max]	Control Features	Voltage Dropout (Max) [Max]	Output Configuration	Voltage - Output (Min/Fixed)	Protection Features	Regulator Type	Board Type	Voltage - Output	Channels per IC	Supplied Contents	Utilized IC / Part
Diodes Inc AP7354-30W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable	0.35 V	Positive
Diodes Inc AP7354-18W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable		Positive	1.8 V	Over Current
Diodes Inc AP7354D-15W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable	0.75 V	Positive	1.5 V	Over Current
Diodes Inc AP7354-12FS4-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	4-XDFN Exposed Pad	X2-DFN1010-4	5.5 V	Enable	0.9 V	Positive	1.2 V	Over Current
Diodes Inc AP7354-28W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable	0.4 V	Positive	2.8 V
Diodes Inc AP7354-30FS4-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	4-XDFN Exposed Pad	X2-DFN1010-4	5.5 V	Enable	0.35 V	Positive		Over Current
Diodes Inc AP7354D-18W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable		Positive	1.8 V	Over Current
Diodes Inc AP7354D-25W5-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	SC-74A SOT-753	SOT-25	5.5 V	Enable	0.48 V	Positive	2.5 V	Over Current
Diodes Inc AP7354-25FS4-7	0.6 µA	Surface Mount	1.81 mOhm	85 °C	-40 °C	150 mA	1	4-XDFN Exposed Pad	X2-DFN1010-4	5.5 V	Enable	0.48 V	Positive	2.5 V	Over Current
Diodes Inc AP7354D-33FS4-7-EVM						150 mA										Positive Fixed	Fully Populated	3.3 V	1 - Single	Board(s)	AP7354

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.34

Description

General part information

AP7354 Series

The AP7354 is a low dropout regulator with 1% output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit and an enable input. When a low signal is applied to the EN pin, the part is disabled and the supply current is now is merely a leakage current of less than 200 nA..
