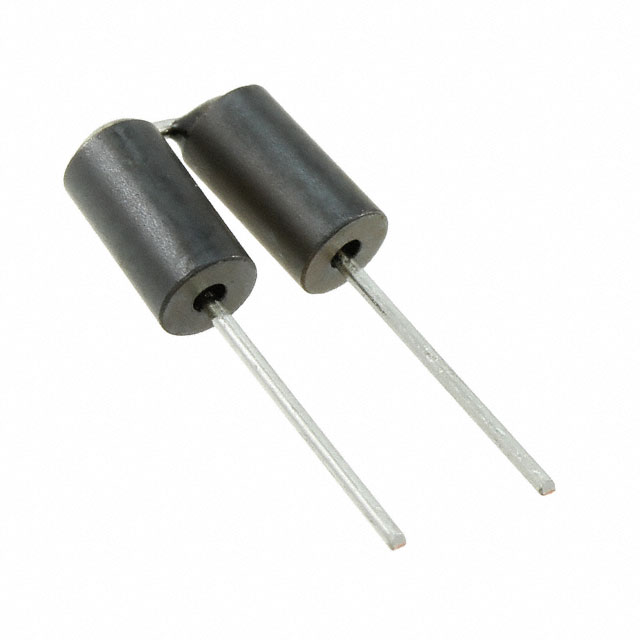

BL02RN2R1M2B
ObsoleteMurata Power Solutions Inc.
FERRITE BEAD AXIAL RAD 1LN
Deep-Dive with AI
Search across all available documentation for this part.
BL02RN2R1M2B
ObsoleteMurata Power Solutions Inc.
FERRITE BEAD AXIAL RAD 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BL02RN2R1M2B |
|---|---|
| Current Rating (Max) [Max] | 7 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Height (Max) | 7.5 mm |
| Height (Max) [Max] | 0.295 in |
| Mounting Type | Through Hole |
| Number of Lines | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial, Split Radial Bend |
| Size / Dimension [diameter] | 3.4 mm |
| Size / Dimension [diameter] | 0.134 in |
BL02RN Series
| Part | Height (Max) | Height (Max) [Max] | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Lines | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) | Package / Case | Height (Max) [Max] | Height (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 6 A | 20 mOhm | |||
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 7 A | 20 mOhm | Axial Split Radial Bend | ||
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 7 A | 20 mOhm | |||
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 6 A | 20 mOhm | Axial Split Radial Bend | ||
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 6 A | 20 mOhm | Axial Split Radial Bend | ||
Murata Power Solutions Inc. | 7.5 mm | 0.295 in | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 6 A | 20 mOhm | |||
Murata Power Solutions Inc. | Through Hole | 3.4 mm | 0.134 in | 85 °C | -40 °C | 1 | 7 A | 20 mOhm | Axial Split Radial Bend | 12 mm | 0.472 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BL02RN Series
1 Ferrite Bead Axial, Split Radial Bend 7A 20mOhm
Documents
Technical documentation and resources
No documents available
