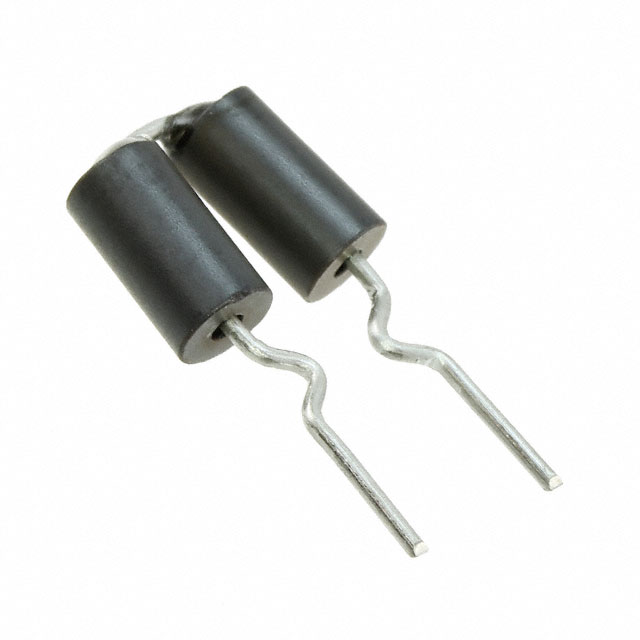

BL02RN2R3J2B

Obsolete

Murata Power Solutions Inc.

FERRITE BEAD AXIAL RAD 1LN

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FERRITE BEAD AXIAL RAD 1LN

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max)	Height (Max) [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Package / Case	Height (Max) [Max]	Height (Max) [Max]
Murata Power Solutions Inc. BL02RN1R2Q1A	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	6 A	20 mOhm
Murata Power Solutions Inc. BL02RN2R1M2B	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	7 A	20 mOhm	Axial Split Radial Bend
Murata Power Solutions Inc. BL02RN1R2M2B	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	7 A	20 mOhm
Murata Power Solutions Inc. BL02RN2R1N1A	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	6 A	20 mOhm	Axial Split Radial Bend
Murata Power Solutions Inc. BL02RN2R1P1A	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	6 A	20 mOhm	Axial Split Radial Bend
Murata Power Solutions Inc. BL02RN1R2P1A	7.5 mm	0.295 in	Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	6 A	20 mOhm
Murata Power Solutions Inc. BL02RN2R3J2B			Through Hole	3.4 mm	0.134 in	85 °C	-40 °C	1	7 A	20 mOhm	Axial Split Radial Bend	12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Ferrite Bead Axial, Split Radial Bend 7A 20mOhm

Technical documentation and resources

No documents available
