1002298
ActiveKyocera AVX
ANTENNA WLAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1002298
ActiveKyocera AVX
ANTENNA WLAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002298 |
|---|---|
| Antenna Type | Stamped Metal |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency (Center/Band) | 5.875 GHz, 5.4875 GHz, 2.4425 GHz |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 5.825 GHz, 2.485 GHz, 5.925 GHz |
| Frequency Range [Min] | 5.825 GHz, 2.4 GHz, 5.15 GHz |
| Gain | 3.6 dBi, 3.8 dBi, 5.1 dBic |
| Height (Max) [Max] | 10.55 mm |
| Height (Max) [Max] | 0.415 in |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| Power - Max [Max] | 500 mW |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.10 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 2.10 | ||
| 10 | $ 1.37 | |||
| 25 | $ 1.17 | |||
| Tape & Reel (TR) | 150 | $ 0.91 | ||
| 300 | $ 0.86 | |||
Description
General part information
1002298 Series

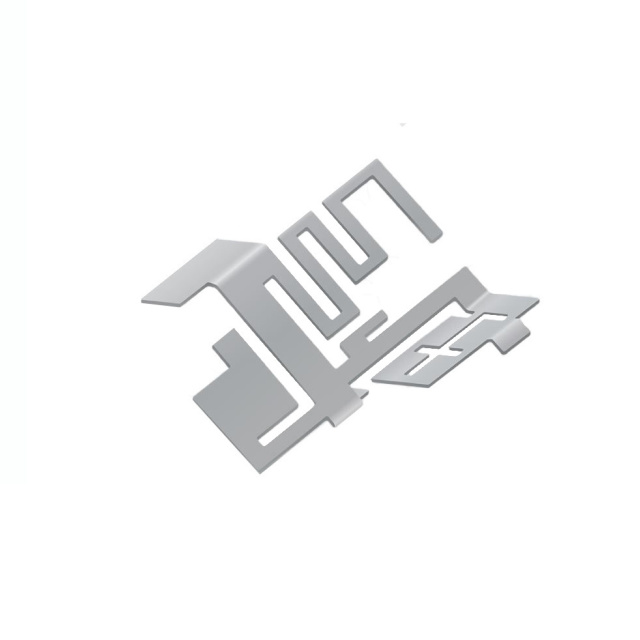

RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount
