1003666-02

Active

Kyocera AVX

BOARD 1001388 1001430 1002298

Search across all available documentation for this part.

Active

Kyocera AVX

BOARD 1001388 1001430 1002298

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Frequency [Min]	Frequency [Max]	Type	Height (Max) [Max]	Height (Max) [Max]	Termination	Number of Bands	Frequency (Center/Band)	Applications	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Mounting Type	Power - Max [Max]	VSWR	Gain	RF Family/Standard	Antenna Type	Frequency Range [Max]	Frequency Range [Min]
Kyocera AVX 1003666-02	Board(s)	2.4 GHz 5.15 GHz	2.485 GHz 2.825 GHz	Antenna
Kyocera AVX 1002298					10.55 mm	0.415 in	Solder	3	2.4425 GHz 5.4875 GHz 5.875 GHz	Bluetooth Wi-Fi WLAN Zigbee™	4 GHz	2 GHz	3 GHz	Surface Mount	500 mW	2	3.6 dBi 3.8 dBi 5.1 dBic	802.15.4 Bluetooth WiFi	Stamped Metal	2.485 GHz 5.825 GHz 5.925 GHz	2.4 GHz 5.15 GHz 5.825 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

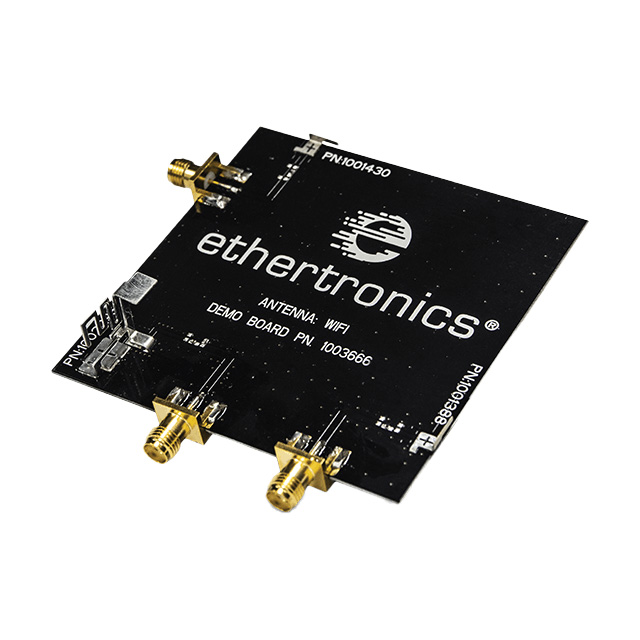

1001388, 1001430, 1002298 - Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 2.825GHz Evaluation Board
