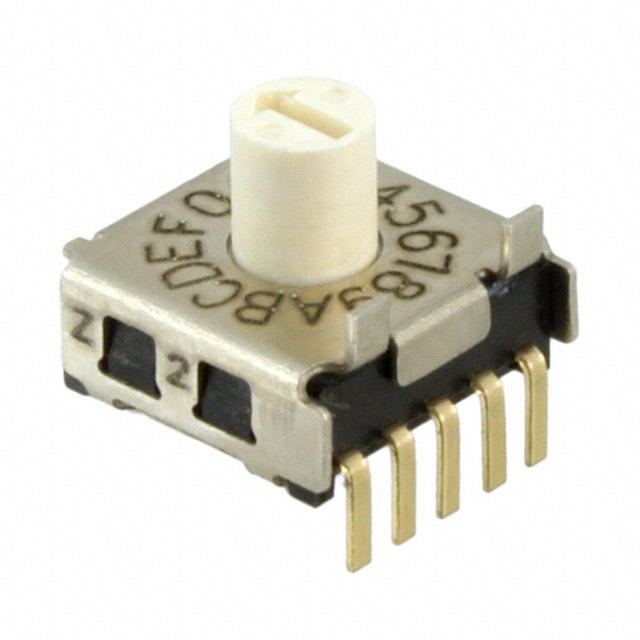

A6KSV-164RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet +1

A6KSV-164RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6KSV-164RS

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Circuit	Hexadecimal
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	20000 Steps
Height Above Board [z]	7.45 mm
Height Above Board [z]	0.293 in
Length [x]	7.2 mm
Length [x]	0.283 "
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

A6KS Series

Part	Current Rating (Amps)	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Length [x]	Length [x]	Actuator Type	Termination Style	Pitch [x]	Pitch [x]	Electrical Life	Number of Positions	Actuator Level	Voltage Rating	Height Above Board	Height Above Board	Pitch	Number of Positions
Omron Electronics Inc-EMC Div A6KSV-104RS-R100	25 mA	BCD	-30 ░C	80 C	Surface Mount Right Angle	Gold	7.45 mm	0.293 in	7.2 mm	0.283 "	Rotary with Shaft	Gull Wing	0.05 in	1.27 mm	20000 Steps	10	Raised	24 VDC
Omron Electronics Inc-EMC Div A6KS-162RF-R100	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.1 in	2.54 mm	20000 Steps		Flush Recessed	24 VDC	0.118 in	3 mm	Full	16
Omron Electronics Inc-EMC Div A6KS-164RF	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.05 in	1.27 mm	20000 Steps		Flush Recessed	24 VDC	0.118 in	3 mm		16
Omron Electronics Inc-EMC Div A6KS-162RS-R100	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary with Shaft	Gull Wing	0.1 in	2.54 mm	20000 Steps		Raised	24 VDC	0.236 in	6 mm	Full	16
Omron Electronics Inc-EMC Div A6KSV-164RS	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount Right Angle	Gold	7.45 mm	0.293 in	7.2 mm	0.283 "	Rotary with Shaft	Gull Wing	0.05 in	1.27 mm	20000 Steps		Raised	24 VDC				16
Omron Electronics Inc-EMC Div A6KS-164RF-R100	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.05 in	1.27 mm	20000 Steps		Flush Recessed	24 VDC	0.118 in	3 mm		16
Omron Electronics Inc-EMC Div A6KS-162RF	25 mA	Hexadecimal	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.1 in	2.54 mm	20000 Steps		Flush Recessed	24 VDC	0.118 in	3 mm	Full	16
Omron Electronics Inc-EMC Div A6KSV-104RF	25 mA	BCD	-30 ░C	80 C	Surface Mount Right Angle	Gold	7.45 mm	0.293 in	7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.05 in	1.27 mm	20000 Steps	10	Flush Recessed	24 VDC
Omron Electronics Inc-EMC Div A6KS-102RS-R100	25 mA	BCD	-30 ░C	80 C	Surface Mount	Gold			7.2 mm	0.283 "	Rotary with Shaft	Gull Wing	0.1 in	2.54 mm	20000 Steps	10	Raised	24 VDC	0.236 in	6 mm	Full
Omron Electronics Inc-EMC Div A6KSV-104RF-R100	25 mA	BCD	-30 ░C	80 C	Surface Mount Right Angle	Gold	7.45 mm	0.293 in	7.2 mm	0.283 "	Rotary for Tool	Gull Wing	0.05 in	1.27 mm	20000 Steps	10	Flush Recessed	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.84
		10	$ 4.62
		63	$ 3.91
		126	$ 3.87
		252	$ 5.95
		504	$ 5.48
		1008	$ 5.18

Description

General part information

A6KS Series

Dip Switch Hexadecimal 16 Position Surface Mount, Right Angle Rotary with Shaft Actuator 25mA 24VDC
