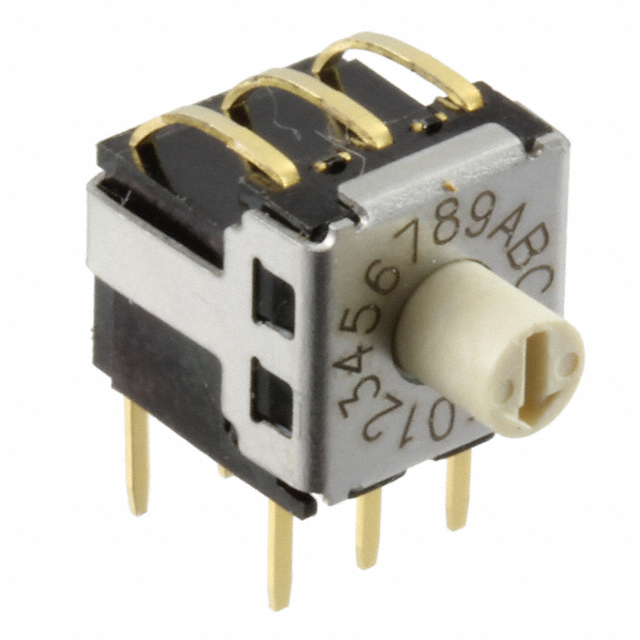

A6KS-162RS-R100
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Search across all available documentation for this part.
A6KS-162RS-R100
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.025A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A6KS-162RS-R100 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Rotary with Shaft |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 20000 Steps |
| Height Above Board | 6 mm |
| Height Above Board | 0.236 in |
| Length [x] | 7.2 mm |
| Length [x] | 0.283 " |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
A6KS Series
| Part | Current Rating (Amps) | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Washable | Mounting Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | Length [x] | Length [x] | Actuator Type | Termination Style | Pitch [x] | Pitch [x] | Electrical Life | Number of Positions | Actuator Level | Voltage Rating | Height Above Board | Height Above Board | Pitch | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 25 mA | BCD | -30 ░C | 80 C | Surface Mount Right Angle | Gold | 7.45 mm | 0.293 in | 7.2 mm | 0.283 " | Rotary with Shaft | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | 10 | Raised | 24 VDC | |||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.1 in | 2.54 mm | 20000 Steps | Flush Recessed | 24 VDC | 0.118 in | 3 mm | Full | 16 | ||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | Flush Recessed | 24 VDC | 0.118 in | 3 mm | 16 | |||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary with Shaft | Gull Wing | 0.1 in | 2.54 mm | 20000 Steps | Raised | 24 VDC | 0.236 in | 6 mm | Full | 16 | ||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount Right Angle | Gold | 7.45 mm | 0.293 in | 7.2 mm | 0.283 " | Rotary with Shaft | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | Raised | 24 VDC | 16 | |||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | Flush Recessed | 24 VDC | 0.118 in | 3 mm | 16 | |||||
Omron Electronics Inc-EMC Div | 25 mA | Hexadecimal | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.1 in | 2.54 mm | 20000 Steps | Flush Recessed | 24 VDC | 0.118 in | 3 mm | Full | 16 | ||||
Omron Electronics Inc-EMC Div | 25 mA | BCD | -30 ░C | 80 C | Surface Mount Right Angle | Gold | 7.45 mm | 0.293 in | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | 10 | Flush Recessed | 24 VDC | |||||
Omron Electronics Inc-EMC Div | 25 mA | BCD | -30 ░C | 80 C | Surface Mount | Gold | 7.2 mm | 0.283 " | Rotary with Shaft | Gull Wing | 0.1 in | 2.54 mm | 20000 Steps | 10 | Raised | 24 VDC | 0.236 in | 6 mm | Full | ||||
Omron Electronics Inc-EMC Div | 25 mA | BCD | -30 ░C | 80 C | Surface Mount Right Angle | Gold | 7.45 mm | 0.293 in | 7.2 mm | 0.283 " | Rotary for Tool | Gull Wing | 0.05 in | 1.27 mm | 20000 Steps | 10 | Flush Recessed | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 4.89 | |
| 300 | $ 4.44 | |||
| 500 | $ 4.12 | |||
| 1000 | $ 3.82 | |||
| 2500 | $ 3.67 | |||
Description
General part information
A6KS Series
Dip Switch Hexadecimal 16 Position Surface Mount Rotary with Shaft Actuator 25mA 24VDC
