TLS805B1LDVBOARDTOBO1

Active

Infineon Technologies

TLS805B1LDV BOARD

Search across all available documentation for this part.

Active

Infineon Technologies

TLS805B1LDV BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Channels per IC	Utilized IC / Part	Current - Output	Board Type	Regulator Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output (Min/Fixed)	Number of Regulators	Package / Case	Output Configuration	Current - Quiescent (Iq)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Output Type	Mounting Type	Control Features	PSRR	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Grade	Protection Features	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Output Type
Infineon Technologies TLS805B1LDVBOARDTOBO1	1 - Single	TLS805B1	50 mA	Fully Populated	Positive Adjustable	Board(s)	42 V	3 V
Infineon Technologies TLS805B1LDV33XUMA1			50 mA						3.3 V	1	10-TFDFN Exposed Pad	Positive	8 ÁA	PG-TSON-10-2	150 °C	-40 °C	AEC-Q100	1.81 mOhm	Surface Mount Wettable Flank	Enable	60 dB	42 V	12 µA	Automotive	Over Current Over Temperature	0.35 V
Infineon Technologies TLS805B1LDVXUMA1			50 mA						1.2 V	1	10-TFDFN Exposed Pad	Positive	1 µA	PG-TSON-10	150 °C	-40 °C	AEC-Q100		Surface Mount	Enable	60 dB	42 V	11 µA	Automotive	Over Current Over Temperature Short Circuit	0.3 V	41.7 V	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 55.20

General part information

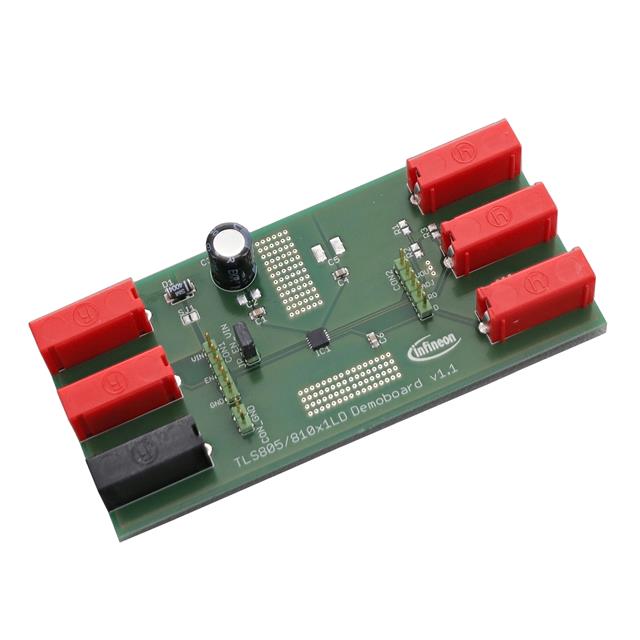

TLS805B1 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board

Technical documentation and resources

No documents available
