R191553000
ActiveRadiall USA, Inc.

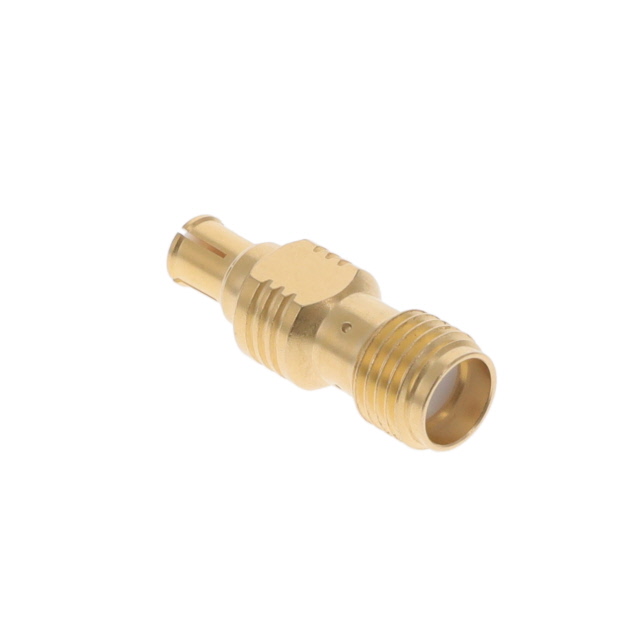

SMP-MAX FEMALE - SMA FEMALE STRA
Deep-Dive with AI
Search across all available documentation for this part.
R191553000
ActiveRadiall USA, Inc.
SMP-MAX FEMALE - SMA FEMALE STRA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R191553000 |
|---|---|
| Adapter Series | SMA to SMP |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Female Socket, SMP Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 81.40 | |
| 10 | $ 74.70 | |||
| 25 | $ 71.83 | |||
| 50 | $ 69.43 | |||
| 100 | $ 65.60 | |||
Description
General part information
R19155 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
