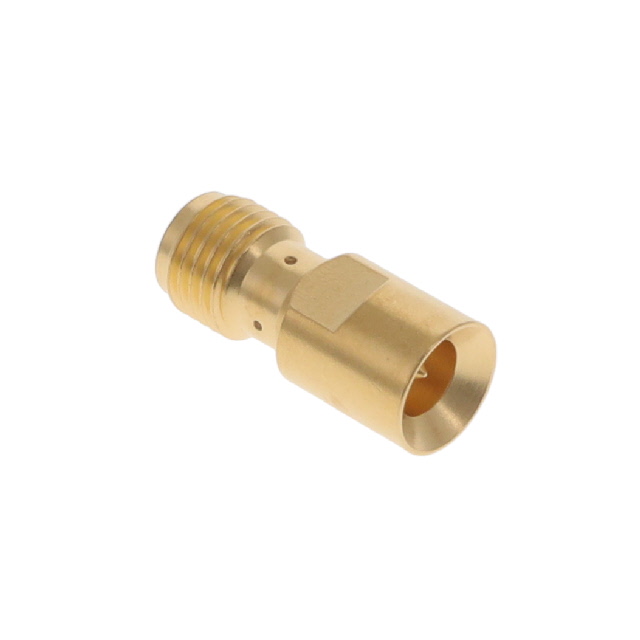

R191552000

Active

Radiall USA, Inc.

SMP-MAX MALE - SMA FEMALE STRAIG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMP-MAX MALE - SMA FEMALE STRAIG

Technical Specifications

Parameters and characteristics for this part

Specification	R191552000

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Center Contact Plating	Convert To (Adapter End)	Dielectric Material	Conversion Type	Adapter Type	Body Material	Convert From (Adapter End)	Style	Adapter Series	Fastening Type	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance	Center Gender
Radiall USA, Inc. R191553000	Gold	Gold	Female Socket SMP Jack	Polytetrafluoroethylene (PTFE)	Between Series	Jack to Jack	Brass	Female Socket SMA Jack	Straight	SMA to SMP	Snap-On Threaded	Beryllium Copper	6000 MHz	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Female to Female
Radiall USA, Inc. R191553010	Gold	Gold	Female Socket SMP Jack	Polytetrafluoroethylene (PTFE)	Between Series	Jack to Jack	Brass	Female Socket SMA Jack	Straight	SMA to SMP		Beryllium Copper	6000 MHz	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms	Female to Female
Radiall USA, Inc. R191552000	Gold	Gold		Polytetrafluoroethylene (PTFE)	Between Series	Plug to Jack	Brass	Female Socket SMA Jack	Straight	SMA to SMP	Snap-On Threaded	Beryllium Copper	6000 MHz	-55 °C	125 °C	Free Hanging (In-Line)	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
