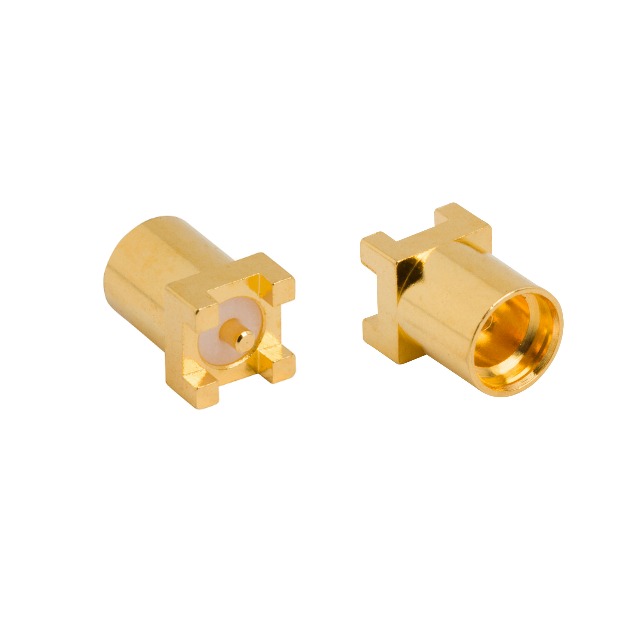

908-22116

Active

Amphenol RF

CONN MMCX JACK STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

908-22116

Active

Amphenol RF

CONN MMCX JACK STR 50 OHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	908-22116

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

908-22 Series

Part	Contact Termination	Center Contact Material	Impedance	Body Finish	Number of Ports	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Dielectric Material	Connector Type	Body Material	Fastening Type	Mating Cycles	Connector Style	Mounting Type	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 908-22101-TCT	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Liquid Crystal Polymer (LCP)	Female Socket Jack	Beryllium Copper	Snap-On	500	MMCX	Surface Mount
Amphenol RF 908-22101	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Liquid Crystal Polymer (LCP)	Female Socket Jack	Beryllium Copper	Snap-On	500	MMCX	Surface Mount	Black
Amphenol RF 908-22100	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	Snap-On	500	MMCX	Board Edge Cutout Surface Mount	Gold	-65 ░C	165 °C
Amphenol RF 908-22116	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	Snap-On	500	MMCX	Surface Mount	Gold	-65 ░C	165 °C
Amphenol RF 908-22101B	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Liquid Crystal Polymer (LCP)	Female Socket Jack	Beryllium Copper	Snap-On	500	MMCX	Surface Mount	Black
Amphenol RF 908-22100T	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	Snap-On	500	MMCX	Board Edge Cutout Surface Mount	Gold	-65 ░C	165 °C
Amphenol RF 908-22103	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	Snap-On	500	MMCX	Board Edge Cutout Surface Mount	Gold
Amphenol RF 908-22106	Solder	Beryllium Copper	50 Ohms	Gold	1	6000 MHz	Solder	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Brass	Snap-On	500	MMCX	Through Hole	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.04
		10	$ 9.94
		100	$ 8.88
		750	$ 6.96
		1500	$ 6.39

Description

General part information

908-22 Series

MMCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
