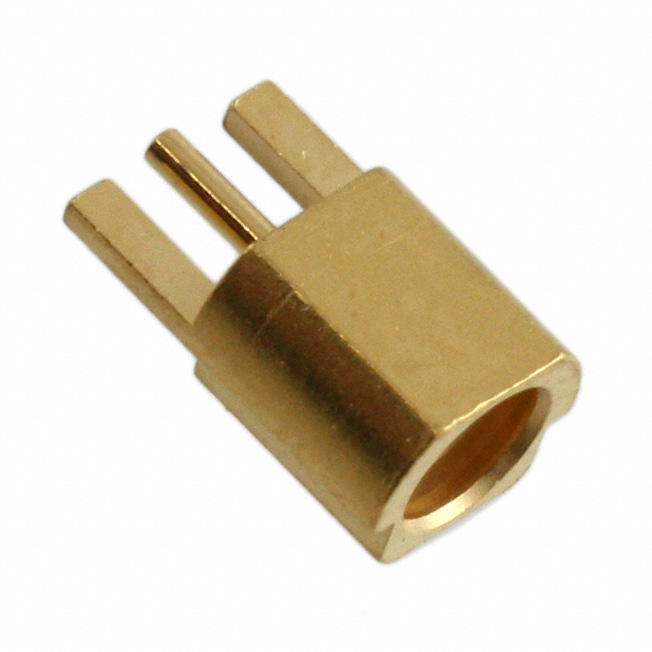

908-22100
ActiveAmphenol RF
CONN MMCX JACK STR 50OHM EDGEMNT
Deep-Dive with AI
Search across all available documentation for this part.
908-22100
ActiveAmphenol RF
CONN MMCX JACK STR 50OHM EDGEMNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 908-22100 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Cutout, Board Edge, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.72 | |
| 10 | $ 12.08 | |||
| 25 | $ 10.92 | |||
| 50 | $ 10.14 | |||
| 100 | $ 9.43 | |||
| 250 | $ 8.59 | |||
| 500 | $ 8.03 | |||
| 1000 | $ 7.52 | |||
Description
General part information
908-22 Series
MMCX Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
Documents
Technical documentation and resources
No documents available
