M20-7911042R
ActiveHarwin Inc.

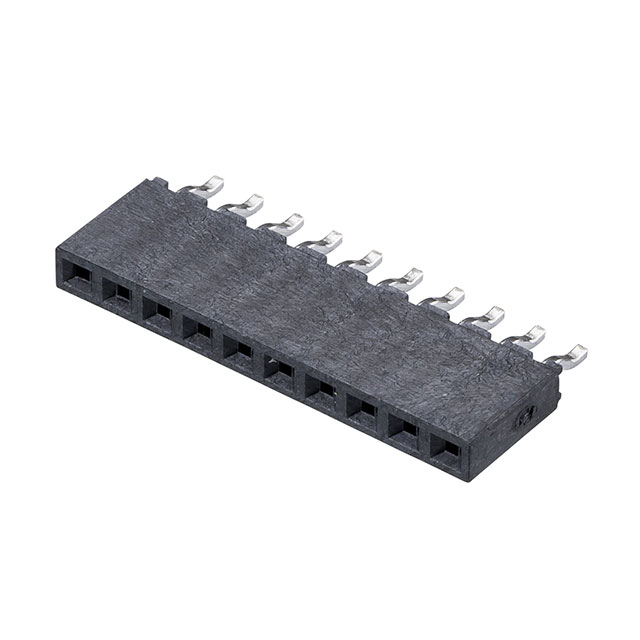

CONNECTOR, RCPT, 10POS, 2.54MM, 1ROW
Deep-Dive with AI
Search across all available documentation for this part.
M20-7911042R
ActiveHarwin Inc.
CONNECTOR, RCPT, 10POS, 2.54MM, 1ROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7911042R |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.59 µin |
| Contact Finish Thickness - Mating | 0.015 µm |
| Contact Finish Thickness - Post | 2.03 µm |
| Contact Finish Thickness - Post | 80 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-791 Series
10 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
