Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7910342R |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.59 µin |
| Contact Finish Thickness - Mating | 0.015 µm |
| Contact Finish Thickness - Post | 2.03 µm |
| Contact Finish Thickness - Post | 80 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.55 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.73 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.55 | |||
| Tape & Reel (TR) | 1300 | $ 0.52 | ||
| 2600 | $ 0.49 | |||
| 3900 | $ 0.48 | |||
| 6500 | $ 0.46 | |||
| 9100 | $ 0.45 | |||
| 13000 | $ 0.44 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.03 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.62 | |||
| 2500 | $ 0.58 | |||
| 5000 | $ 0.54 | |||
Description
General part information
M20-791 Series

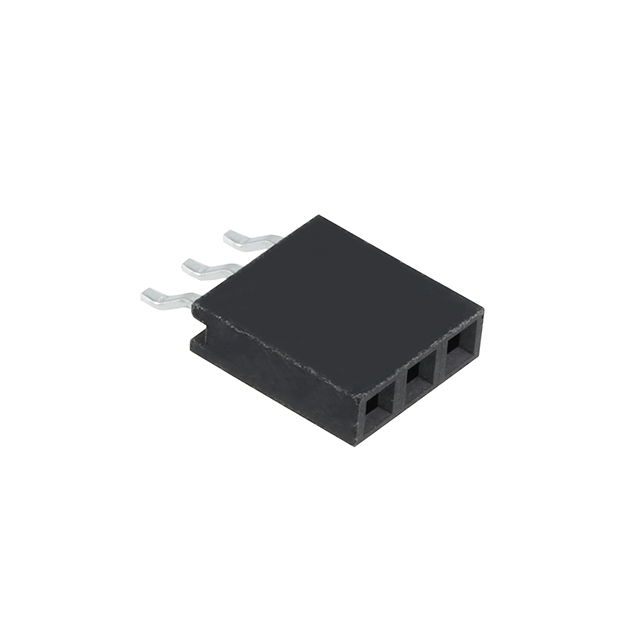

3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
