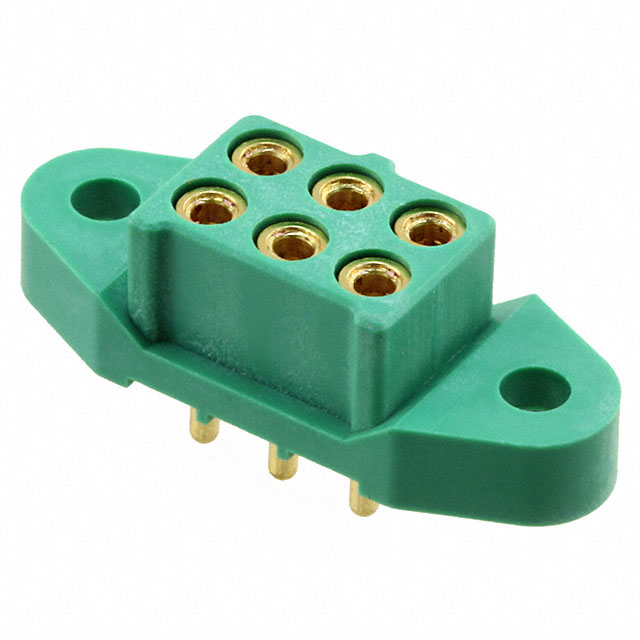

M300-FV3064500
ActiveHarwin Inc.
3+3 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. NO JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M300-FV3064500
ActiveHarwin Inc.
3+3 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. NO JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M300-FV3064500 |
|---|---|
| Applications | General Purpose, Telecommunications, Automotive |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket, Power |
| Features | Mating Flange |
| Insulation Color | Green |
| Insulation Height | 6.5 mm |
| Insulation Height | 0.256 in |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mated Stacking Heights | 8.9 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M300-FV3 Series
6 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold
