M300-FV3104500

Active

Harwin Inc.

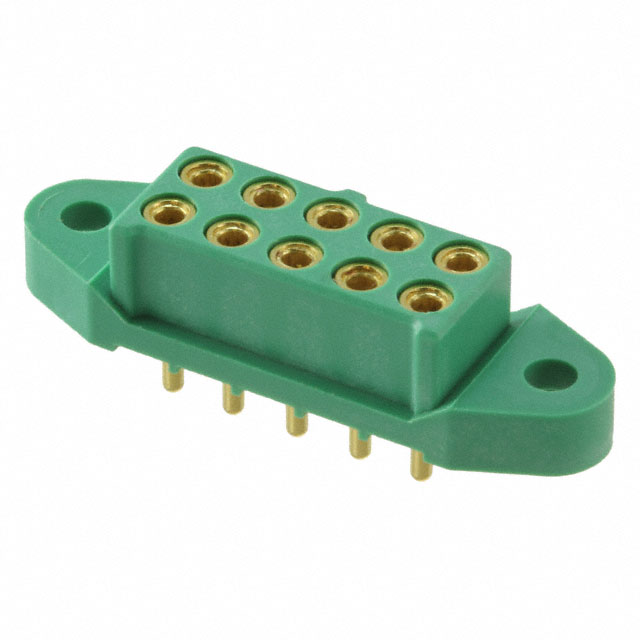

CONNECTOR, RCPT, 10POS, 3ROW, 3MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR, RCPT, 10POS, 3ROW, 3MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M300-FV3104500

Applications	General Purpose, Telecommunications, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket, Power
Features	Mating Flange
Insulation Color	Green
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mated Stacking Heights	8.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Applications	Features	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Mated Stacking Heights	Number of Positions Loaded	Voltage Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Connector Type	Mounting Type	Style	Insulation Material	Number of Rows	Number of Positions	Contact Finish - Mating
Harwin Inc. M300-FV3064500	Solder	-65 ░C	347 °F	Female Socket Power	Automotive General Purpose Telecommunications	Mating Flange	3 mm	0.118 in	UL94 V-0	8.9 mm	All	600 V	Green	0.118 in	3 mm	Circular	3.2 mm	0.126 in	6.5 mm	0.256 in	12 µin	0.3 µm	Beryllium Copper	Receptacle	Through Hole	Board to Board Cable	Glass Filled Nylon 4/6 Polyamide (PA46)	2	6	Gold
Harwin Inc. M300-FV3104500	Solder	-65 ░C	347 °F	Female Socket Power	Automotive General Purpose Telecommunications	Mating Flange	3 mm	0.118 in	UL94 V-0	8.9 mm	All	600 V	Green	0.118 in	3 mm	Circular	3.2 mm	0.126 in	6.5 mm	0.256 in	10 çin	0.25 çm	Beryllium Copper	Receptacle	Through Hole	Board to Board Cable	Glass Filled Nylon 4/6 Polyamide (PA46)	2	10	Gold
