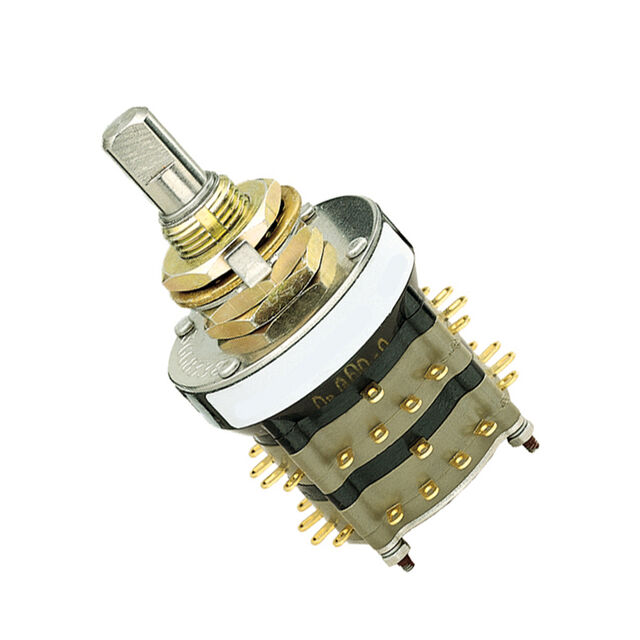

59M18-07A20N

Active

Grayhill Inc.

SWITCH ROTARY 20POS 250MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 20POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Number of Decks	Contact Timing	Angle of Throw	Current Rating (Amps)	Voltage Rating - AC	Index Stops	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Contact Finish	Voltage Rating - DC	Contact Material	Actuator Length [x]	Circuit per Deck	Depth Behind Panel [z]	Number of Positions	Circuit per Deck [custom]	Number of Decks [custom]
Grayhill Inc. 59M18-07A20N	Solder Lug	7	Non-Shorting	18 °	250 mA	115 V	Continuous	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	80.37 mm	20
Grayhill Inc. 59M18-03-1-17N	Solder Lug	3	Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP17T	40.18 mm
Grayhill Inc. 59M18-04-4-05N	Solder Lug	4	Non-Shorting	18 °	250 mA	115 V	Fixed		6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm		48.64 mm		4P5T
Grayhill Inc. 59M18-05B20N	Solder Lug	5	Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	57.1 mm	20
Grayhill Inc. 59M18-05A20N	Solder Lug	5	Non-Shorting	18 °	250 mA	115 V	Continuous	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	57.1 mm	20
Grayhill Inc. 59M18-01-1-15N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP15T	23.27 mm	15		1
Grayhill Inc. 59M18-01-2-10N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	2	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	DP10T	23.27 mm	10		1
Grayhill Inc. 59M18-01-1-03N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP3T	23.27 mm			1
Grayhill Inc. 59M18-04-1-20N-C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 20 Position SP20T 250mA (AC/DC) 115 VAC Panel Mount
