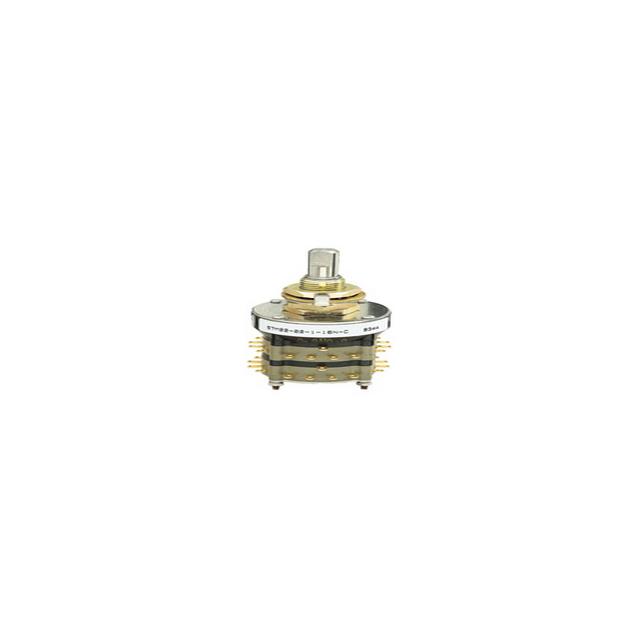

59M18-04-1-20N-C

Active

Grayhill Inc.

SWITCH ROTARY 20POS

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 20POS

Technical Specifications

Parameters and characteristics for this part

Specification	59M18-04-1-20N-C

null

Part	Termination Style	Number of Decks	Contact Timing	Angle of Throw	Current Rating (Amps)	Voltage Rating - AC	Index Stops	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Contact Finish	Voltage Rating - DC	Contact Material	Actuator Length [x]	Circuit per Deck	Depth Behind Panel [z]	Number of Positions	Circuit per Deck [custom]	Number of Decks [custom]
Grayhill Inc. 59M18-07A20N	Solder Lug	7	Non-Shorting	18 °	250 mA	115 V	Continuous	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	80.37 mm	20
Grayhill Inc. 59M18-03-1-17N	Solder Lug	3	Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP17T	40.18 mm
Grayhill Inc. 59M18-04-4-05N	Solder Lug	4	Non-Shorting	18 °	250 mA	115 V	Fixed		6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm		48.64 mm		4P5T
Grayhill Inc. 59M18-05B20N	Solder Lug	5	Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	57.1 mm	20
Grayhill Inc. 59M18-05A20N	Solder Lug	5	Non-Shorting	18 °	250 mA	115 V	Continuous	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP20T	57.1 mm	20
Grayhill Inc. 59M18-01-1-15N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP15T	23.27 mm	15		1
Grayhill Inc. 59M18-01-2-10N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	2	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	DP10T	23.27 mm	10		1
Grayhill Inc. 59M18-01-1-03N	Solder Lug		Non-Shorting	18 °	250 mA	115 V	Fixed	1	6.35 mm	Flatted	Gold	30 V	Silver Alloy	11.1 mm	SP3T	23.27 mm			1
