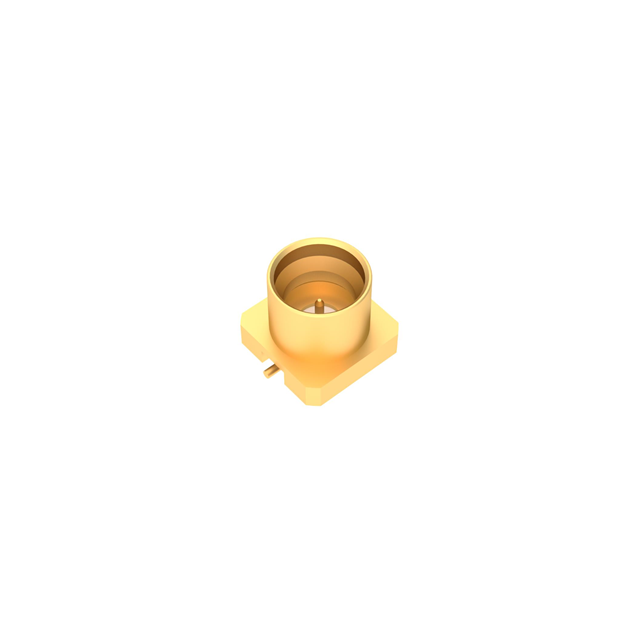

R222941100

Active

Radiall USA, Inc.

SMP / STRAIGHT MALE RECEPTACLE S

Deep-Dive with AI

Search across all available documentation for this part.

R222941100

Active

Radiall USA, Inc.

SMP / STRAIGHT MALE RECEPTACLE S

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R222941100

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R22294 Series

Part	Connector Type	Contact Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Fastening Type	Housing Color	Center Contact Material	Dielectric Material	Impedance	Voltage Rating	Frequency - Max [Max]	Body Finish	Shield Termination	Number of Ports	Center Contact Plating	Body Material
Radiall USA, Inc. R222941100	Male Pin Receptacle	Solder	Full Detent	-55 °C	125 °C	Surface Mount	Snap-On	Gold	Brass	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Brass
Radiall USA, Inc. R222941324	Male Pin Receptacle	Solder	Limited Detent Non-Magnetic	-55 °C	125 °C	Surface Mount	Snap-On	Gold	Beryllium Copper	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Bronze
Radiall USA, Inc. R222940100W	Male Pin Receptacle	Solder	Full Detent	-55 °C	125 °C	Through Hole	Snap-On	Gold	Brass	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Brass
Radiall USA, Inc. R222940300	Male Pin Receptacle	Solder	Limited Detent	-55 °C	125 °C	Through Hole	Snap-On	Gold	Brass	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Brass
Radiall USA, Inc. R222940100	Male Pin Receptacle	Solder	Full Detent	-55 °C	125 °C	Through Hole	Snap-On	Gold	Brass	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Brass
Radiall USA, Inc. R222941700W	Male Pin Receptacle	Solder	Smooth Bore	-55 °C	125 °C	Surface Mount	Snap-On	Gold	Brass	Polyetheretherketone (PEEK)	50 Ohms	335 V	12.4 GHz	Gold	Solder	1	Gold	Brass
Radiall USA, Inc. R222946314	Female Socket Jack	Solder	Limited Detent	-55 °C	125 °C	Through Hole		Gold	Bronze	Polytetrafluoroethylene (PTFE)	50 Ohms		12 GHz	Gold	Solder	1	Gold	Bronze

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 5.14

Description

General part information

R22294 Series

SMP Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder

Documents

Technical documentation and resources

No documents available
