Technical Specifications
Parameters and characteristics for this part

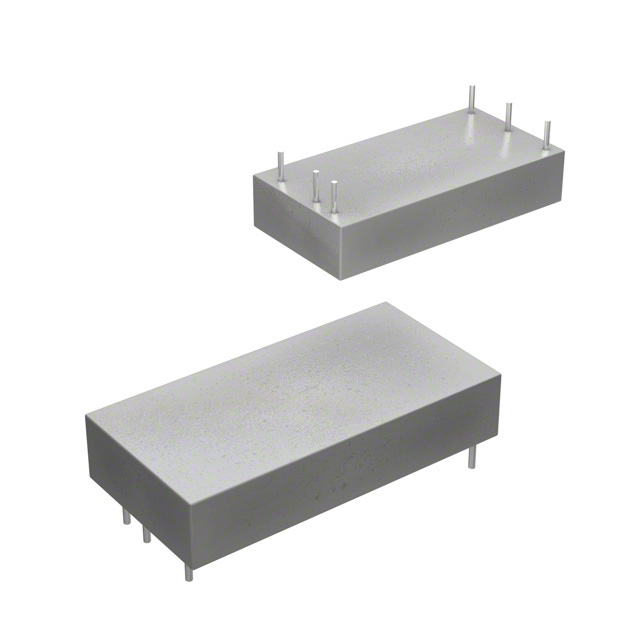

| Specification | RP30-4805DF |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3 A |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 90 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
RP30-4812 Series
Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 4:1 18-75in +/-15out
| Part | Voltage - Input (Min) [Min] | Features | Efficiency | Mounting Type | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Control Features | Voltage - Output 2 | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Isolation | Package / Case | Type | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power | 18 V | OCP OVP Remote On/Off SCP | 88 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 5 V | Active High Enable | -5 V | 3 A | 3 A | 30 W | 75 V | 2 | 1.6 kV | 6-DIP Module | Isolated Module | |||
RECOM Power | 9 V | OCP OTP OVP Remote On/Off SCP | 89 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 12 V | Active High Enable | 2.5 A | 30 W | 36 V | 1 | 1.6 kV | 6-DIP Module | Isolated Module | |||||
RECOM Power | 9 V | OCP OVP Remote On/Off SCP | 88 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 5 V | Active Low Enable | -5 V | 3 A | 3 A | 30 W | 36 V | 2 | 1.6 kV | 6-DIP Module | Isolated Module | |||
RECOM Power | 18 V | OCP OVP Remote On/Off SCP | 88 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 5 V | Active Low Enable | 6 A | 30 W | 75 V | 1 | 1.6 kV | 6-DIP Module | Isolated Module | |||||
RECOM Power | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 88 % | Through Hole | ITE (Commercial) | 50.8 mm | 85 °C | -40 °C | 12 V | Active High Enable | -12 V | 30 W | 75 V | 2 | 1.6 kV | 8-DIP Module 7 Leads | Isolated Module | 1.25 A | 0.4 in | 40.64 mm | |||||||
RECOM Power | 10 VDC | OCP OTP OVP Remote On/Off SCP UVLO | 87 % | Through Hole | ITE (Commercial) | 50.8 mm | 85 °C | -40 °C | 12 V | Active Low Enable | 2.5 A | 30 W | 1 | 1.6 kV | 8-DIP Module 7 Leads | Isolated Module | 0.4 in | 40.64 mm | |||||||||
RECOM Power | 36 V | OCP OTP OVP Remote On/Off SCP | 90 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 5 V | Active High Enable | -5 V | 3 A | 3 A | 30 W | 75 V | 2 | 1.6 kV | 6-DIP Module | Isolated Module | |||
RECOM Power | 18 V | OCP OTP OVP Remote On/Off SCP UVLO | 85 % | Through Hole | ITE (Commercial) | 50.8 mm | 85 °C | -40 °C | 12 V | Active Low Enable | -12 V | 30 W | 75 V | 2 | 1.6 kV | 8-DIP Module 7 Leads | Isolated Module | 1.25 A | 0.4 in | 40.64 mm | |||||||
RECOM Power | 18 V | OCP OVP Remote On/Off SCP | 90 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 12 V | Active High Enable | 2.5 A | 30 W | 75 V | 1 | 1.6 kV | 6-DIP Module | Isolated Module | |||||
RECOM Power | 36 V | OCP OTP OVP Remote On/Off SCP | 91 % | Through Hole | ITE (Commercial) | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 85 °C | -40 °C | 12 V | Active Low Enable | 2.5 A | 30 W | 75 V | 1 | 1.6 kV | 6-DIP Module | Isolated Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RP30-4812 Series
Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 4:1 18-75in +/-15out
