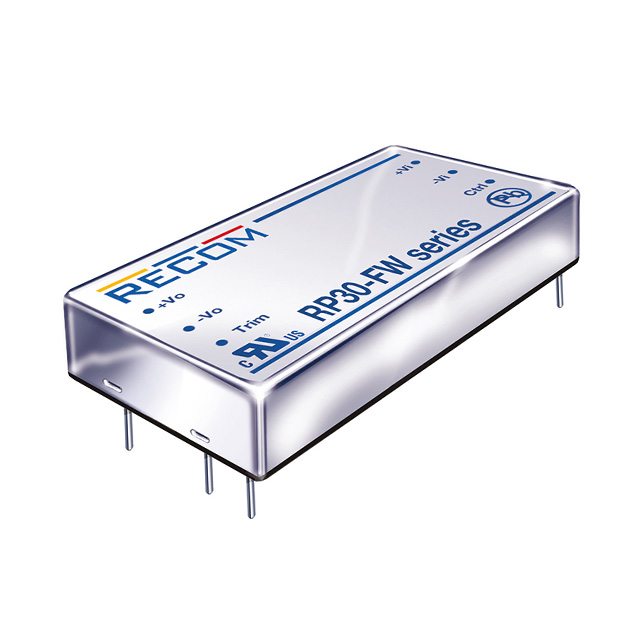

RP30-2412SFW

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 4:1 9-36VIN 12VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP30-2412SFW

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 4:1 9-36VIN 12VOUT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP30-2412SFW

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2.5 A
Efficiency	89 %
Features	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

RP30-4812 Series

Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 4:1 18-75in +/-15out

Part	Voltage - Input (Min) [Min]	Features	Efficiency	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Control Features	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Package / Case	Type	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
RECOM Power RP30-4805DFW-HC	18 V	OCP OVP Remote On/Off SCP	88 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	5 V	Active High Enable	-5 V	3 A	3 A	30 W	75 V	2	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-2412SFW	9 V	OCP OTP OVP Remote On/Off SCP	89 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	12 V	Active High Enable			2.5 A	30 W	36 V	1	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-2405DFW/N	9 V	OCP OVP Remote On/Off SCP	88 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	5 V	Active Low Enable	-5 V	3 A	3 A	30 W	36 V	2	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-4805SFW/N-HC	18 V	OCP OVP Remote On/Off SCP	88 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	5 V	Active Low Enable			6 A	30 W	75 V	1	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-4812DE	36 V	OCP OTP OVP Remote On/Off SCP UVLO	88 %	Through Hole	ITE (Commercial)					50.8 mm		85 °C	-40 °C	12 V	Active High Enable	-12 V			30 W	75 V	2	1.6 kV	8-DIP Module 7 Leads	Isolated Module	1.25 A	0.4 in	40.64 mm
RECOM Power RP30-2412SEW/N-HC	10 VDC	OCP OTP OVP Remote On/Off SCP UVLO	87 %	Through Hole	ITE (Commercial)					50.8 mm		85 °C	-40 °C	12 V	Active Low Enable			2.5 A	30 W		1	1.6 kV	8-DIP Module 7 Leads	Isolated Module		0.4 in	40.64 mm
RECOM Power RP30-4805DF	36 V	OCP OTP OVP Remote On/Off SCP	90 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	5 V	Active High Enable	-5 V	3 A	3 A	30 W	75 V	2	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-4812DEW/N	18 V	OCP OTP OVP Remote On/Off SCP UVLO	85 %	Through Hole	ITE (Commercial)					50.8 mm		85 °C	-40 °C	12 V	Active Low Enable	-12 V			30 W	75 V	2	1.6 kV	8-DIP Module 7 Leads	Isolated Module	1.25 A	0.4 in	40.64 mm
RECOM Power RP30-4812SFW-HC	18 V	OCP OVP Remote On/Off SCP	90 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	12 V	Active High Enable			2.5 A	30 W	75 V	1	1.6 kV	6-DIP Module	Isolated Module
RECOM Power RP30-4812SF/N-HC	36 V	OCP OTP OVP Remote On/Off SCP	91 %	Through Hole	ITE (Commercial)	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	85 °C	-40 °C	12 V	Active Low Enable			2.5 A	30 W	75 V	1	1.6 kV	6-DIP Module	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 100.97
		5	$ 95.60
		10	$ 94.84
		25	$ 88.72
		50	$ 85.66
		100	$ 81.38
Sager	N/A	1	$ 100.97
		5	$ 94.67
		10	$ 89.10
		25	$ 83.00
		50	$ 79.71
		100	$ 77.67
		250	$ 73.89

Description

General part information

RP30-4812 Series

Isolated DC/DC Converters - Through Hole 30W DC/DC 1.6kV REG 4:1 18-75in +/-15out
