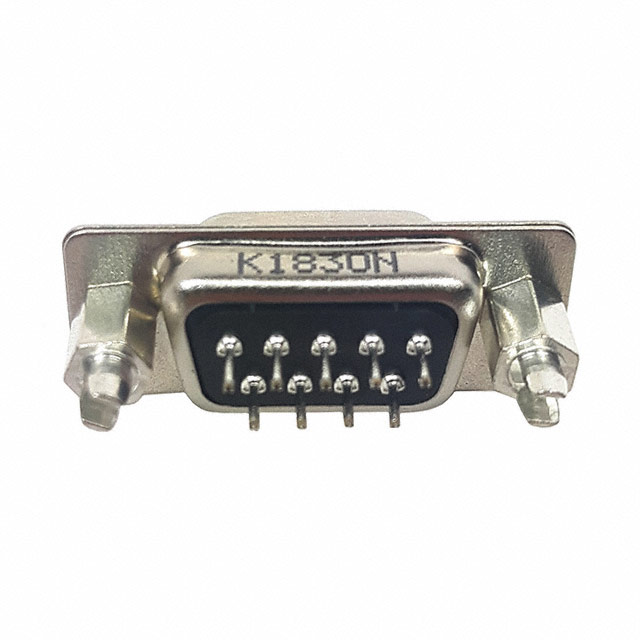

K85X-ED-9S-BR30

Active

Kycon, Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	K85X-ED-9S-BR30

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	30 VDC

Part	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions	Voltage Rating	Termination	Material Flammability Rating	Flange Feature	Current Rating (Amps)	Contact Form	Connector Type	Shell Material, Finish	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Type	Number of Rows	Color	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Contact Finish Thickness
Kycon, Inc. K85X-ED-9S-BR30	Gold	105 ░C	-55 °C	Brass	9	30 VDC	Solder	UL94 V-0	4-40 Board Side	2 A	Stamped	Receptacle Female Sockets	Nickel Plated Steel	D-Sub	DE E	1	Through Hole	Signal	2	Black	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT) Glass Filled
Kycon, Inc. K85X-ED-9S-BRJ	Gold	105 ░C	-55 °C	Brass	9	30 VDC	Solder	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	2 A	Stamped	Receptacle Female Sockets	Nickel Plated Steel	D-Sub	DE E	1	Through Hole	Signal	2	Black			Polybutylene Terephthalate (PBT) Glass Filled	Flash
Kycon, Inc. K85X-ED-9S-KJ30	Gold	105 ░C	-55 °C	Brass	9	30 VDC	Solder	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	2 A	Stamped	Receptacle Female Sockets	Nickel Plated Steel	D-Sub	DE E	1	Through Hole	Signal	2	Black	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT) Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	616	$ 4.99
