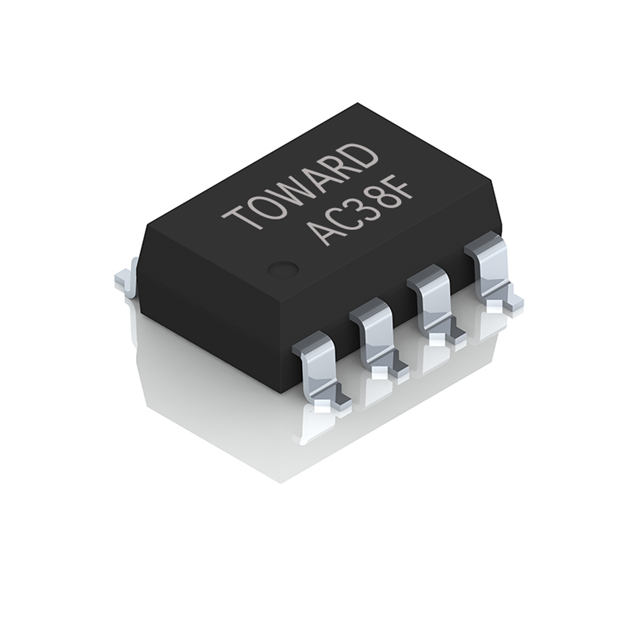

AC38F
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY DPST-NO 70MA 0-600V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC38F
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY DPST-NO 70MA 0-600V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC38F |
|---|---|
| Circuit | DPST-NO (2 Form A) |
| Load Current | 70 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 60 Ohm |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 8-SMD |
| Supplier Device Package | 8-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.21 | |
| 10 | $ 3.68 | |||
| 45 | $ 3.37 | |||
| 90 | $ 3.23 | |||
| 135 | $ 3.16 | |||
| 270 | $ 3.03 | |||
| 540 | $ 2.91 | |||
| 1035 | $ 2.80 | |||
Description
General part information
- Series
Solid State DPST-NO (2 Form A) 8-SMD (0.300", 7.62mm)
