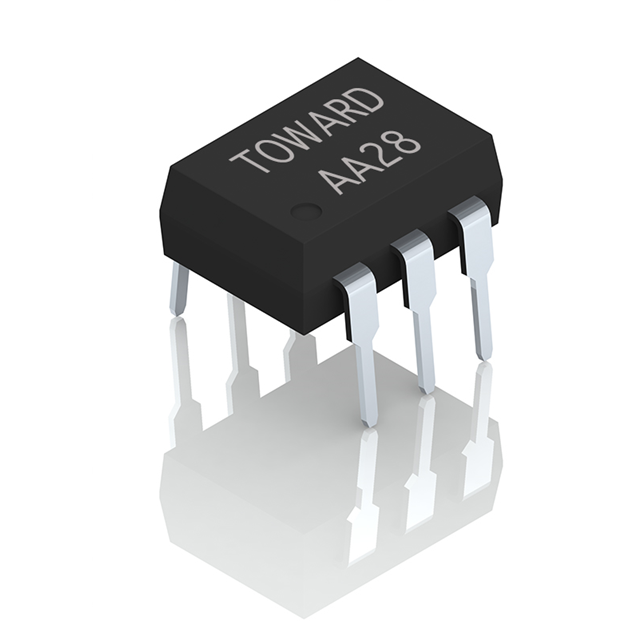

AA28

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY SPST-NO 4.5A 0-40V

Search across all available documentation for this part.

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY SPST-NO 4.5A 0-40V

Technical Specifications

Parameters and characteristics for this part

Part	Load Current	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Output Type	Mounting Type	On-State Resistance (Max) [Max]	Supplier Device Package	Circuit	Package / Case	Package / Case	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Voltage - Input	On-State Resistance (Max)
Bright Toward Industrial Co., Ltd. AC30	100 mA	1.5 VDC	1 V	PC Pin	DC	Through Hole	30 Ohm	8-DIP	SPST-NO (1 Form A) x 2	0.3 in	8-DIP	7.62 mm
Bright Toward Industrial Co., Ltd. AA52	350 mA			PC Pin	AC DC	Through Hole		6-DIP		7.62 mm	6-DIP		1700 V	0 V	0.3 in	1.33 VDC
Bright Toward Industrial Co., Ltd. AA36F	2.5 A			Gull Wing	AC DC	Surface Mount	100 mOhms	6-SMD		0.3 in	6-SMD	7.62 mm	60 V	0 V		1.37 VDC
Bright Toward Industrial Co., Ltd. AG70S	400 mA			Gull Wing	AC DC	Surface Mount	1 Ohms	4-SOP		0.173 in	4-SOP	4.4 mm	60 V	0 V		1.17 VDC
Bright Toward Industrial Co., Ltd. AB47	1.25 A			PC Pin	AC DC	Through Hole		4-DIP			4-DIP (0.300" 7.62mm)		80 V	0 V		1.37 VDC	160 mOhms
Bright Toward Industrial Co., Ltd. AA42	5 A			PC Pin	AC DC	Through Hole	24 mOhms	6-DIP		7.62 mm	6-DIP		60 V	0 V	0.3 in	1.37 VDC
Bright Toward Industrial Co., Ltd. AA28	4.5 A			Gull Wing	AC DC	Surface Mount	30 mOhms	6-SMD		0.3 in	6-SMD	7.62 mm				1.37 VDC
Bright Toward Industrial Co., Ltd. AA42F	5 A			Gull Wing	AC DC	Surface Mount	64 mOhms	6-SMD		0.3 in	6-SMD	7.62 mm	60 V	0 V		1.37 VDC
Bright Toward Industrial Co., Ltd. AC38F	70 mA			Gull Wing	AC DC	Surface Mount	60 Ohm	8-SMD	DPST-NO (2 Form A)	0.3 in	8-SMD	7.62 mm	600 V	0 V		1.17 VDC
Bright Toward Industrial Co., Ltd. TL216	16 A			PC Pin	AC Zero Cross	Through Hole		4-SIP			4-SIP		240 V	0 V		1.18 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
