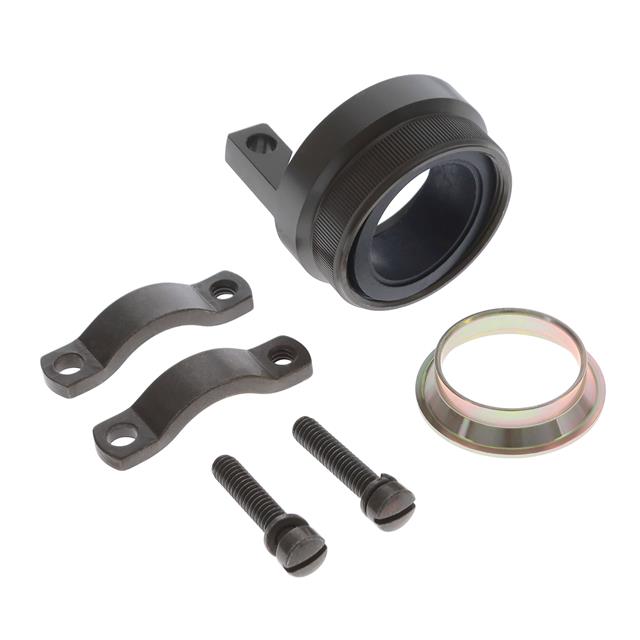

10-350349-323

Active

Amphenol Industrial Operations

CONN CAB CLAMP SZ32 1 3/4-18

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN CAB CLAMP SZ32 1 3/4-18

Technical Specifications

Parameters and characteristics for this part

Specification	10-350349-323

Cable Exit	180 °
Cable Opening [diameter]	0.922 in, 1.2 in
Cable Opening [diameter]	30.48 mm, 23.42 mm
Color	Olive
Diameter - Outside [diameter]	2.188 in
Diameter - Outside [diameter]	55.58 mm
Features	Clamp Screws
For Use With/Related Products	QWLD Series Connectors
Ingress Protection	Waterproof
Material	Aluminum
Plating	Cadmium
Shell Size - Insert	32
Shielding	Unshielded
Thread Size
Type	Cable Clamp

Part	Ingress Protection	Shielding	Cable Exit	Thread Size	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Features	Plating	Color	For Use With/Related Products	Material	Type	Shell Size - Insert	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Thread Size
Amphenol Industrial Operations 10-350349-243	Waterproof	Unshielded	180 °	1 7/16-18 UNEF	23.52 mm	0.926 in	0.611 in	15.52 mm	Clamp Screws	Cadmium	Olive	QWLD Series Connectors	Aluminum	Cable Clamp	24	1.671 in	42.44 mm
Amphenol Industrial Operations 10-350349-323	Waterproof	Unshielded	180 °						Clamp Screws	Cadmium	Olive	QWLD Series Connectors	Aluminum	Cable Clamp	32	2.188 in	55.58 mm	0.922 in 1.2 in	23.42 mm 30.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Connector Cable Clamp 1 3/4-18 UNS 32
