10-350349-243
ActiveAmphenol Industrial Operations

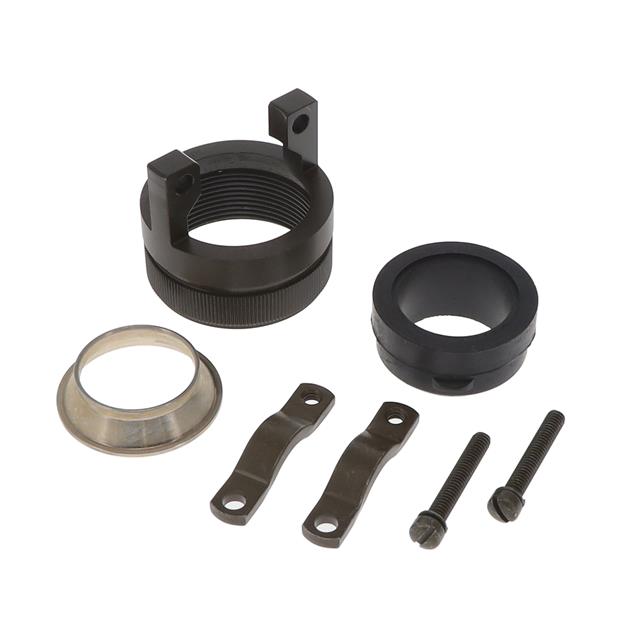

CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-350349-243
ActiveAmphenol Industrial Operations
CONN CAB CLAMP SZ24 1 7/16-18
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-350349-243 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [diameter] | 23.52 mm |
| Cable Opening [Max] [diameter] | 0.926 in |
| Cable Opening [Min] [diameter] | 0.611 in |
| Cable Opening [Min] [diameter] | 15.52 mm |
| Color | Olive |
| Diameter - Outside [diameter] | 1.671 in |
| Diameter - Outside [diameter] | 42.44 mm |
| Features | Clamp Screws |
| For Use With/Related Products | QWLD Series Connectors |
| Ingress Protection | Waterproof |
| Material | Aluminum |
| Plating | Cadmium |
| Shell Size - Insert | 24 |
| Shielding | Unshielded |
| Thread Size | 1 7/16-18 UNEF |
| Type | Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.79 | |
| 10 | $ 24.47 | |||
| 25 | $ 22.94 | |||
| 50 | $ 21.85 | |||
| 100 | $ 20.80 | |||
| 250 | $ 19.50 | |||
| 500 | $ 18.65 | |||
Description
General part information
10-350349 Series
Olive Connector Cable Clamp 1 7/16-18 UNEF 24
