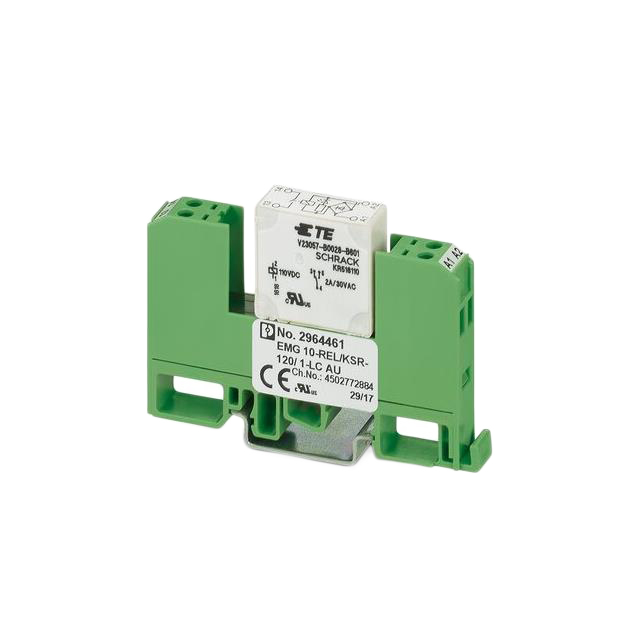

2964461

LTB

Phoenix Contact

RELAY GEN PURP SPST 500MA 120V

Search across all available documentation for this part.

LTB

Phoenix Contact

RELAY GEN PURP SPST 500MA 120V

Technical Specifications

Parameters and characteristics for this part

Specification	2964461

Coil Current	5 mA
Coil Resistance	24 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC, 120 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	0.5 A
Features	Varistor, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage	36 VDC, 30 VAC
Termination Style	Screw Terminal

Part	Relay Type	Termination Style	Load - Max Switching	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Contact Rating (Current)	Coil Resistance	Coil Type	Contact Form	Contact Material	Approval Agency	Coil Current	Operate Time	Coil Voltage	Features	Mounting Type
Phoenix Contact 2964432	General Purpose	Screw Terminal	140 W 1500 VA	11 ms	-20 C	40 °C	250 VAC 250 VDC	6 A	24 kOhms	Non Latching	SPST-NO (1 Form A)	Silver Nickel (AgNi)	cULus EAC UL	5 mA	7 ms	120 VAC 120 VDC	Lighted Indicator Socket Included Varistor	DIN Rail
Phoenix Contact 2964461	General Purpose	Screw Terminal		11 ms	-20 C	40 °C	30 VAC 36 VDC	0.5 A	24 kOhms	Non Latching	SPST-NO (1 Form A)	Gold (Au) Silver Palladium (AgPd)		5 mA	7 ms	120 VAC 120 VDC	Socket Included Varistor	DIN Rail
Phoenix Contact 2964445	General Purpose	Screw Terminal	140 W 1500 VA	11 ms	-20 C	40 °C	250 VAC 250 VDC	6 A	24 kOhms	Non Latching	SPDT (1 Form C)	Silver Nickel (AgNi)	cULus EAC UL	5 mA	7 ms	120 VAC 120 VDC	Lighted Indicator Socket Included Varistor	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.32

General part information

General Purpose Relay SPST-NO (1 Form A) DIN Rail

Technical documentation and resources
