Technical Specifications
Parameters and characteristics for this part
| Specification | 2964432 |
|---|---|
| Approval Agency | UL, EAC, cULus |
| Coil Current | 5 mA |
| Coil Resistance | 24 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Varistor, Socket Included |
| Load - Max Switching | 140 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
29644 Series
| Part | Relay Type | Termination Style | Load - Max Switching | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Contact Rating (Current) | Coil Resistance | Coil Type | Contact Form | Contact Material | Approval Agency | Coil Current | Operate Time | Coil Voltage | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | General Purpose | Screw Terminal | 140 W 1500 VA | 11 ms | -20 C | 40 °C | 250 VAC 250 VDC | 6 A | 24 kOhms | Non Latching | SPST-NO (1 Form A) | Silver Nickel (AgNi) | cULus EAC UL | 5 mA | 7 ms | 120 VAC 120 VDC | Lighted Indicator Socket Included Varistor | DIN Rail |
Phoenix Contact | General Purpose | Screw Terminal | 11 ms | -20 C | 40 °C | 30 VAC 36 VDC | 0.5 A | 24 kOhms | Non Latching | SPST-NO (1 Form A) | Gold (Au) Silver Palladium (AgPd) | 5 mA | 7 ms | 120 VAC 120 VDC | Socket Included Varistor | DIN Rail | ||
Phoenix Contact | General Purpose | Screw Terminal | 140 W 1500 VA | 11 ms | -20 C | 40 °C | 250 VAC 250 VDC | 6 A | 24 kOhms | Non Latching | SPDT (1 Form C) | Silver Nickel (AgNi) | cULus EAC UL | 5 mA | 7 ms | 120 VAC 120 VDC | Lighted Indicator Socket Included Varistor | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.13 | |
| 10 | $ 68.20 | |||
| 50 | $ 63.01 | |||
| 100 | $ 60.05 | |||
Description
General part information
29644 Series

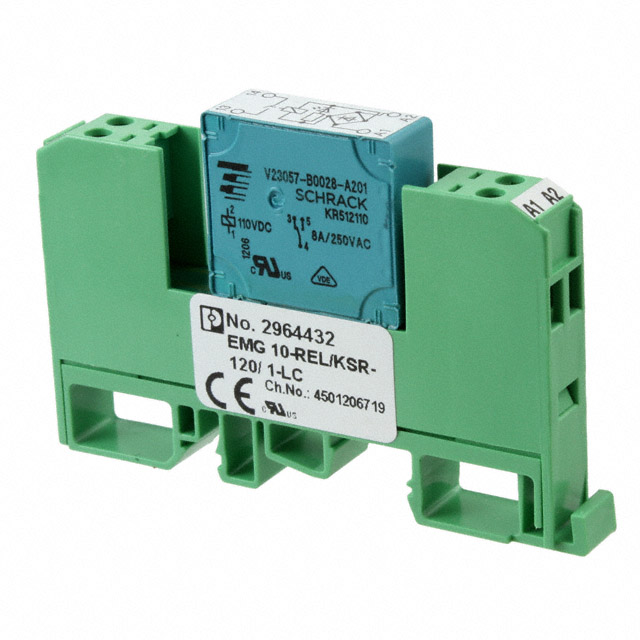

General Purpose Relay SPST-NO (1 Form A) 120VAC/DC Coil DIN Rail
