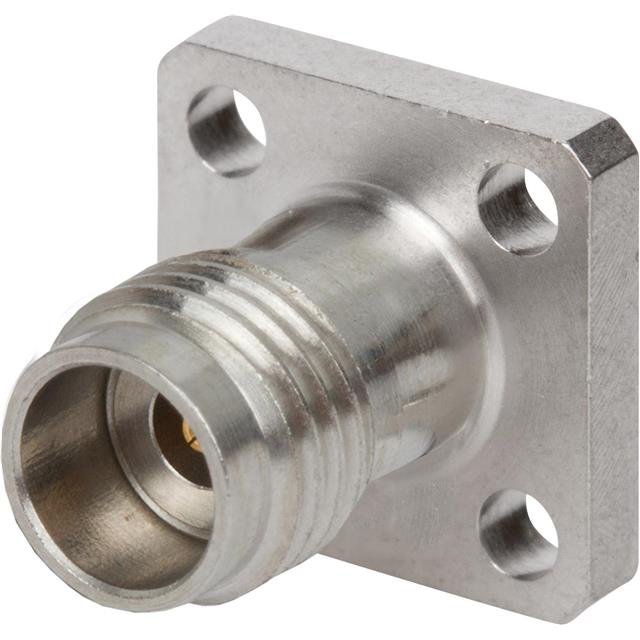

1621-60072

Active

Amphenol SV Microwave

2.4MM FEMALE FIELD REPLACEABLE F

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.4MM FEMALE FIELD REPLACEABLE F

Technical Specifications

Parameters and characteristics for this part

Part	Mating Cycles	Center Contact Plating	Contact Termination	Connector Style	Connector Style	Connector Style	Connector Type	Dielectric Material	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Center Contact Material	Mounting Type	Housing Color	Number of Ports	Impedance	Body Finish	Mounting Feature
Amphenol SV Microwave 1621-60075	500	Gold	Compression	OS-50	2.4 mm	APC-2.4	Female Socket Jack	Polyetherimide (PEI)	Stainless Steel	50 GHz	-65 ░C	165 °C	Screw	Beryllium Copper	Board Edge End Launch	Silver	1	50 Ohms
Amphenol SV Microwave 1621-60050	500	Gold	Solder	OS-50	2.4 mm	APC-2.4	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Stainless Steel	50 GHz	-65 ░C	165 °C	Solder	Beryllium Copper	Board Edge End Launch	Gold	1	50 Ohms	Gold
Amphenol SV Microwave 1621-60072	500	Gold	Compression	OS-50	2.4 mm	APC-2.4	Female Socket Jack	Polyetherimide (PEI)	Stainless Steel	50 GHz	-65 ░C	165 °C	Screw	Beryllium Copper	Surface Mount	Silver	1	50 Ohms		Flange
Amphenol SV Microwave 1621-60050-TD	500	Gold	Solder	OS-50	2.4 mm	APC-2.4	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Stainless Steel	50 GHz	-65 ░C	165 °C	Solder	Beryllium Copper	Board Edge End Launch	Gold	1	50 Ohms	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 52.19

General part information

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Surface Mount Compression
