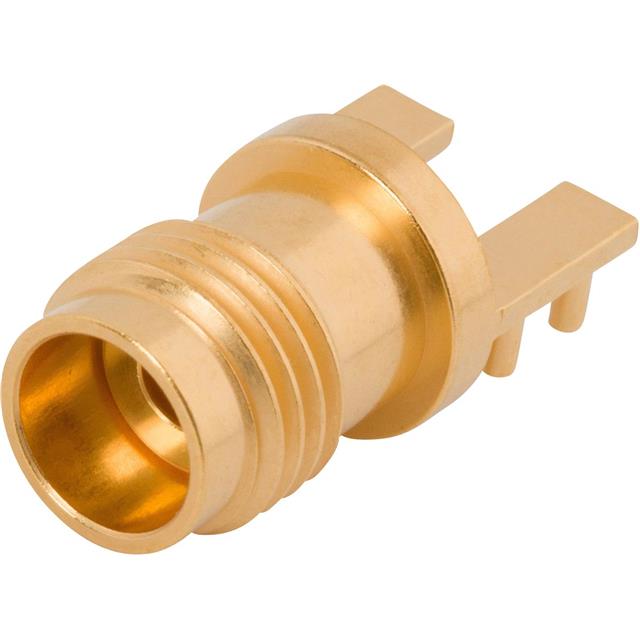

1621-60050 - 1621-60050

1621-60050

Active
Amphenol SV Microwave

2.4MM JACK R/A 50OHM EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
1621-60050 - 1621-60050

1621-60050

Active
Amphenol SV Microwave

2.4MM JACK R/A 50OHM EDGE MNT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1621-60050
Body FinishGold
Body MaterialStainless Steel
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleOS-50
Connector Style2.4 mm
Connector StyleAPC-2.4
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]50 GHz
Housing ColorGold
Impedance50 Ohms
Mating Cycles500
Mounting TypeBoard Edge, End Launch
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 117.08
10$ 91.21
25$ 83.03
50$ 77.52
100$ 72.53

Description

General part information

1621-60 Series

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
