MS3102A14S-4P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3102A14S-4P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102A14S-4P |
|---|---|
| Applications | Military, Marine |
| Color | Olive Drab |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-4 |
| Shielding | Unshielded |
| Voltage Rating | 1250 VDC, 900 VAC |
MS3102A14 Series
| Part | Shell Finish | Insert Material | Connector Type | Contact Finish - Mating | Mounting Feature | Color | Primary Material | Shell Material | Number of Positions | Shielding | Qualification | Contact Material | Applications | Shell Size - Insert | Cable Opening [custom] | Cable Opening [custom] | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Grade | Ingress Protection | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Neoprene | Male Pins Receptacle | Silver | Flange | Olive Drab | Metal | Aluminum Alloy | 6 | Unshielded | MIL-5015 | Copper Alloy | Marine Military | 14S-6 | 0.75 in | 19.05 mm | N | -55 °C | 125 °C | ||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Neoprene | Male Pins Receptacle | Silver | Flange | Olive Drab | Metal | Aluminum Alloy | 1 | Unshielded | MIL-DTL-5015 | Copper Alloy | Marine Military | 14S-4 | N | -55 °C | 125 °C | 900 VAC 1250 VDC | Military | Environment Resistant | 13 A | ||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Neoprene | Male Pins Receptacle | Silver | Flange | Olive Drab | Metal | Aluminum Alloy | 4 | Unshielded | MIL-5015 | Copper Alloy | Marine Military | 14S-2 | 0.75 in | 19.05 mm | X | -55 °C | 125 °C | ||||
Amphenol Industrial Operations | Olive Drab Chromate over Cadmium | Neoprene | Male Pins Receptacle | Silver | Flange | Olive Drab | Metal | Aluminum Alloy | 4 | Unshielded | MIL-5015 | Copper Alloy | Marine Military | 14S-2 | 0.75 in | 19.05 mm | N | -55 °C | 125 °C | ||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.24 | |
| 10 | $ 13.51 | |||
| 25 | $ 12.99 | |||
| 50 | $ 12.47 | |||
| 100 | $ 11.78 | |||
| 250 | $ 10.74 | |||
| 500 | $ 10.05 | |||
| 1000 | $ 9.22 | |||
Description
General part information
MS3102A14 Series

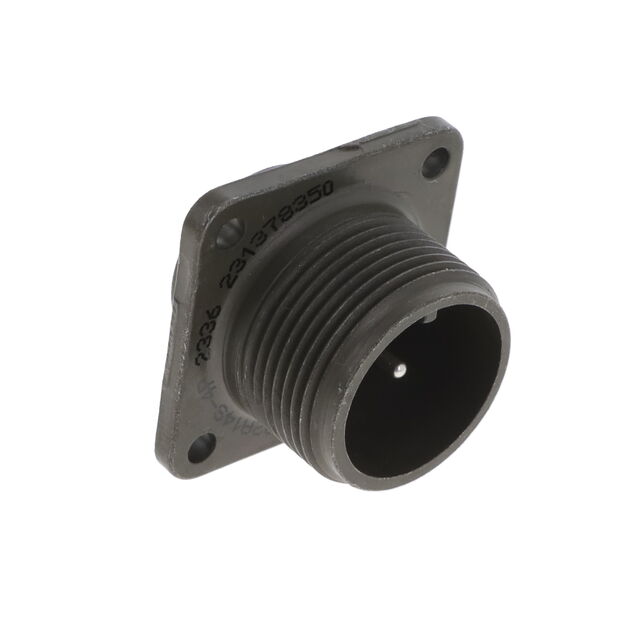

1 Position Circular Connector Receptacle, Male Pins Solder Cup
